H05V-K is an insulated single-core wire for protected internal wiring of electrical equipment, control panels, distribution boards and lighting equipment in dry locations. Fine-stranded class 5 copper supports routing within an enclosure, while TI1 PVC provides the core insulation. The product range on this page is rated 300/500V and lists conductor areas of 0.5, 0.75 and 1 mm2.
NP2356/3
Fine bare copper strands
Strands to VDE-0295 Class-5, NP 2363 Class-5
Special PVC TI1 core insulation
Color coded to HD 308
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 12.5 x Ø |
| Static bending radius | 12.5 x Ø |
| Flexing Temperature | -5°C to +70°C |
| Static temperature | -30°C to +80°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 100 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|
| # x mm² | mm | mm | kg/km | kg/km |
| 1 x 0.5 | 0,6 | 2.1 | 4.9 | 10 |
| 1 x 0.75 | 0,6 | 2.4 | 7.2 | 13 |
| 1 x 1 | 0,6 | 2.6 | 9.6 | 15 |
One class 5 bare copper conductor with TI1 PVC insulation.
Three listed conductor areas with separate nominal diameters and weights.
A compact wire construction for protected equipment and panel wiring.

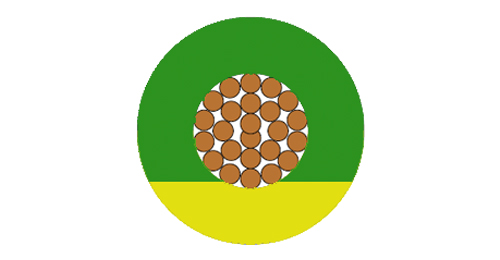

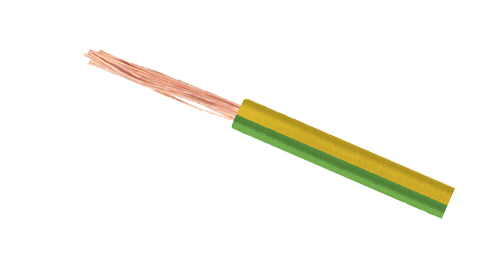

Specify insulation colour, conductor area, cut length and terminal requirements together. Protect the wire at enclosure openings and along any route exposed to abrasion. The green/yellow image illustrates a protective-conductor colour; order the colour required for each circuit function and the applicable installation rules.
Does H05V-K have an outer sheath?
This is a single-core insulated wire. Its construction lists PVC core insulation without a separate outer sheath.
Which sizes are available in this table?
The listed conductor areas are 0.5, 0.75 and 1 mm2.
What does the K construction provide?
The conductor uses fine copper strands to class 5 for flexible routing within equipment.
Can the pictured green/yellow colour be used for every circuit?
Green/yellow identifies a protective conductor. Select insulation colours for the required circuit functions and installation rules.
Is the wire intended to serve as an exposed appliance cord?
Its intended use is protected wiring within equipment or suitable wiring systems. An appliance supply cord normally requires a separately specified sheathed construction.
