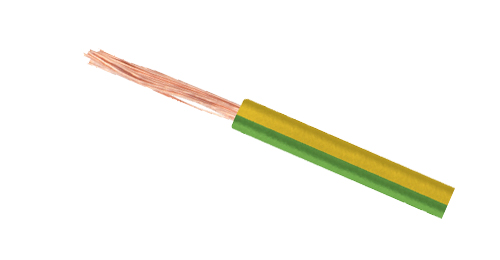

H07V-K Cable: An Economical Choice for Internal Equipment Connections. Compliant with Portuguese Standards (Norma Portuguesa), this cost-effective single-core flexible cable is widely used for internal wiring in electrical equipment, distribution cabinets, and switchgear.
NP2356/3

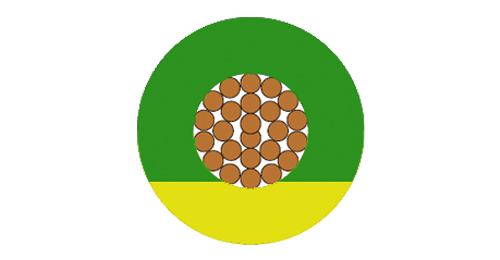

Fine bare copper strands
Strands to VDE-0295 Class-5, NP 2363 Class-5
Special PVC TI1 core insulation
Color coded to HD 308
| Working voltage | 450/750V |
| Test voltage | 2500 volts |
| Flexing bending radius | 12.5 x Ø |
| Static bending radius | 12.5 x Ø |
| Flexing Temperature | -5ºC to +70ºC |
| Static temperature | -30ºC to +80ºC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 100 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|
| # x mm² | mm | mm | kg/km | kg/km |
| 1x 1.5 | 0,7 | 3.1 | 14.4 | 20 |
| 1x 2.5 | 0,8 | 3.6 | 24.0 | 31 |
| 1x 4 | 0,8 | 4.3 | 38.0 | 48 |
| 1x 6 | 0,8 | 4.9 | 58.0 | 69 |
| 1x 10 | 1,0 | 6.4 | 96.0 | 121 |
| 1x 16 | 1,0 | 8.1 | 154.0 | 211 |
| 1x 25 | 1,2 | 9.8 | 240 | 303 |
| 1x 35 | 1,2 | 11.1 | 336 | 417 |
| 1x 50 | 1,4 | 13.1 | 480 | 539 |
| 1x 70 | 1,4 | 15.5 | 672 | 730 |
| 1x 95 | 1,6 | 17.2 | 912 | 900 |
| 1x 120 | 1,6 | 19.7 | 1152 | 1135 |
| 1x 150 | 1,8 | 21.3 | 1440 | 1410 |
| 1x 185 | 2,0 | 23.4 | 1776 | 1845 |
| 1x 240 | 2,2 | 27.1 | 2304 | 2270 |
