600/1000V triple core XLPE insulated
LSZH sheathed unarmoured cable is designed
for fixed low voltage power distribution.
It is suitable for industrial plants,
commercial buildings, public buildings,
power distribution systems and utility networks.
The XLPE insulation provides reliable
electrical performance and thermal stability.
The LSZH sheath helps reduce smoke emission
and corrosive gas release in the event of fire.
As an unarmoured cable, it does not provide
metallic mechanical protection.
It is suitable for cable trays, ladder racks,
ducts, conduit and protected cable routes.
It is not recommended for direct burial
without additional mechanical protection.
The cable should be selected according to
voltage rating, conductor size,
installation method, fire performance requirement
and project specification.
IEC 60228
IEC 60502-1
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
600/1000V
Conductor : Flexible copper, class 2.
Insulation : Cross linked polyethylene XLPE.
Outer Sheath : Halogen free thermoplastic compound HFFR.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
Tape : Polyester tape.
Insulation Colour : Natural.

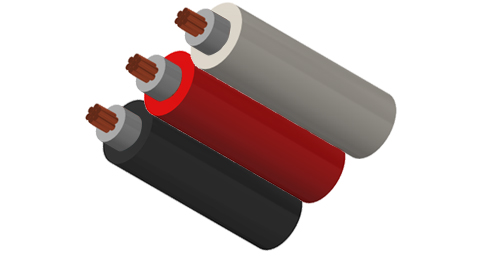

Sheath Colour : Black, red and white or black, red and blue.
Maximum temperature range during operation : 90°C
Maximum short circuit temperature (5 Seconds) : 250°C
Overload maximum core temperature : 130°C
| Conductor | FLP600-RZ1-R / N2XOH | |||||
|---|---|---|---|---|---|---|
| No. of Cores × Cross- sectional Area | Conductor Class | Conductor Diam | Min. Insulation Thick | Min. Outer Sheath Thick | Approx. Overall Diameter | Approx. Weight |
| No.×mm² | mm | mm | mm | mm | kg/km | |
| 10 | 2 | 4.1 | 0.7 | 0.9 | 7.7×22.7 | 393 |
| 16 | 2 | 5.3 | 0.7 | 0.9 | 8.8×26.0 | 565 |
| 25 | 2 | 6.6 | 0.9 | 0.9 | 10.5×31.2 | 845 |
| 35 | 2 | 7.8 | 0.9 | 0.9 | 11.7×34.8 | 1127 |
| 50 | 2 | 9.3 | 1.0 | 0.9 | 13.5×40.2 | 1571 |
| 70 | 2 | 11.3 | 1.1 | 1.0 | 15.8×47.1 | 2171 |
| 95 | 2 | 12.8 | 1.1 | 1.0 | 17.4×51.9 | 2769 |
| 120 | 2 | 14.5 | 1.2 | 1.1 | 19.5×58.2 | 3550 |
| 150 | 2 | 16.2 | 1.4 | 1.2 | 21.8×65.1 | 4286 |
| 185 | 2 | 18.0 | 1.6 | 1.2 | 24.0×71.7 | 5214 |
| 240 | 2 | 20.7 | 1.7 | 1.2 | 26.9×80.4 | 6813 |
| 300 | 2 | 23.2 | 1.8 | 1.3 | 29.9×89.3 | 8419 |
| 400 | 2 | 26.5 | 2.0 | 1.5 | 34.0×101.6 | 11109 |
| 500 | 2 | 30.3 | 2.2 | 1.6 | 38.5×115.1 | 14387 |
Conductor operating temperature : 90°C
Ambient temperature : 30°C
| Conductor Cross- sectional area | Max. DC Resist. Cond. 20°C | Perm. Current Buried/Duct 20°C | Perm. Current Rating In Air 30°C - flat formation | Current Rating In Air 30°C - trefoil | Nominal Capacitance |
|---|---|---|---|---|---|
| mm² | Ohm/km | A | A | A | pF/m |
| 10 | 1.91 | 58 | 77 | 74 | 445 |
| 16 | 1.21 | 75 | 105 | 101 | 593 |
| 25 | 0.78 | 96 | 141 | 135 | 549 |
| 35 | 0.554 | 115 | 176 | 169 | 637 |
| 50 | 0.386 | 135 | 216 | 207 | 682 |
| 70 | 0.272 | 167 | 279 | 268 | 750 |
| 95 | 0.206 | 197 | 342 | 328 | 840 |
| 120 | 0.161 | 223 | 400 | 383 | 873 |
| 150 | 0.129 | 251 | 464 | 444 | 843 |
| 185 | 0.108 | 281 | 533 | 510 | 803 |
| 240 | 0.0801 | 324 | 634 | 607 | 866 |
| 300 | 0.0641 | 365 | 736 | 703 | 916 |
| 400 | 0.0486 | 426 | 868 | 823 | 944 |
| 500 | 0.0384 | 481 | 998 | 946 | 983 |
KEY FEATURES
- Manufactured according to IEC 60502-1 requirements
- Conductor according to IEC 60228
- 600/1000V voltage rating
- Triple core power cable construction
- XLPE insulated conductors
- LSZH / LSOH outer sheath
- Unarmoured cable design
- Low smoke zero halogen sheath performance
- Suitable for fixed low voltage power distribution
- Suitable for cable trays, ducts and ladder racks
SELECTION NOTES
Before quotation, please confirm:
- Voltage rating
- Conductor size
- Conductor material
- Cable length
- Sheath colour
- Fire performance requirement
- Installation method
- Installation environment
- Required standard or project specification
- Packing requirement
- Destination port or delivery address
600/1000V triple core XLPE LSZH cable
is commonly selected for projects requiring
low smoke zero halogen performance.
It is suitable where mechanical protection
is provided by the installation system.
