This series of cables is specifically designed for light-duty electrical appliances and portable equipment in residential homes, kitchens, offices, and similar environments. Utilizing special insulation and sheathing materials, it offers excellent heat resistance, making it suitable for kitchen appliances, heating equipment, and high-temperature environments (such as lighting system installations), while avoiding contact with heat-generating components and radiant heat sources. It is intended for indoor high-temperature applications and is not suitable for outdoor use, industrial plants, agricultural buildings, or non-household portable tools.
Under normal operating conditions, the conductors can withstand a maximum temperature of up to 90°C. When used in high-temperature environments, direct skin contact should be avoided.
CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

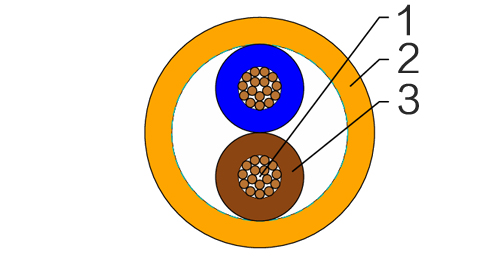

| Bare copper fine wire conductor |
| Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
| PVC core insulation TI3 to VDE-0281 Part 1 |
| Color coded to VDE-0293-308 |
| PVC outer jacket TM3 |
| Working voltage | 300/300 volts |
| Test voltage | 3000 volts |
| Flexing bending radius | 15 x O |
| Static bending radius | 4 x O |
| Flexing temperature | +5oC to +90oC |
| Static temperature | -40oC to +90oC |
| Short circuit temperature | +160oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| H03V2V2-F | ||||||
| 20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 5 | 9.6 | 38 |
| 20(16/32) | 3 x 0.50 | 0.5 | 0.6 | 5.4 | 14.4 | 45 |
| 20(16/32) | 4 x 0.50 | 0.5 | 0.6 | 5.8 | 19.2 | 55 |
| 18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 5.5 | 14.4 | 46 |
| 18(24/32) | 3 x 0.75 | 0.5 | 0.6 | 6 | 21.6 | 59 |
| 18(24/32) | 4 x 0.75 | 0.5 | 0.6 | 6.5 | 28.8 | 72 |
| H03V2V2H2-F | ||||||
| 20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 3.2 x 5.2 | 9.7 | 32 |
| 18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 3.4 x 5.6 | 14.4 | 35 |
