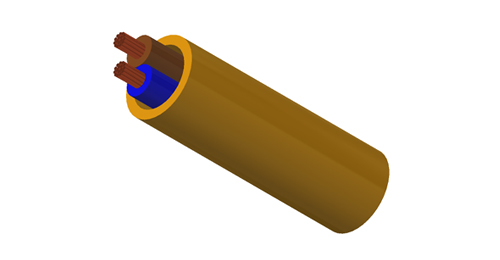

The H03VV-F and H03VVH2-F series cables are specifically designed for small household appliances and light-duty domestic electrical equipment, suitable for applications with low mechanical stress, such as kitchen appliances, table lamps, floor lamps, vacuum cleaners, office equipment, and radios. These cables comply with relevant equipment standards but are not intended for cooking or heating appliances. The 0.75 mm² cross-section cable is not suitable for outdoor, industrial, or agricultural machinery applications.
With a rated operating voltage of 300/300 volts and passing a 2000-volt withstand voltage test, the cables offer excellent flexibility (bending radius 7.5×Ø) and weather resistance (static temperature range -40°C to +70°C). They feature bare copper fine-stranded conductors, PVC insulation and sheathing, and conform to the NF C 32-201-5 standard. Additionally, they are certified under the CE Low Voltage Directive and meet RoHS environmental requirements.
The cables achieve a flame-retardant rating in accordance with NF C 32-070 and provide an insulation resistance of 20 MΩ·km. Available in multiple core counts and cross-sectional options (0.5 mm² and 0.75 mm²), they support configurations from 2 to 5 cores, making them ideal for low-voltage electrical connections in residential and office environments.
NF C 32-201-5
CE low voltage directive 73/23/EEC & 93/68/EEC.ROHS compliant

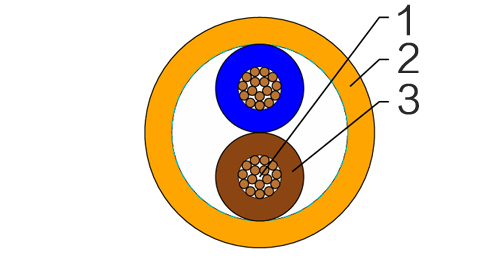

Bare copper fine wire conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
PVC core insulation T12 to VDE-0281 Part 1
Color coded to VDE-0293-308
Green-yellow grounding (3 conductors and above)
PVC outer jacket TM2
Working voltage : 300/300 volts
Test voltage : 2000 volts
Flexing bending radius : 7.5 x Ø
Static bending radius : 4 x Ø
Flexing temperature : -5ºC to +70ºC
Static temperature : -40ºC to +70ºC
Short circuit temperature : +160ºC
Flame retardant : NF C 32-070
Insulation resistance : 20 MΩ x km
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|---|---|
| # × mm² | mm | mm | mm | kg/km | kg/km | |
| H03VV-F | ||||||
| 20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 5 | 9.6 | 38 |
| 20(16/32) | 3 x 0.50 | 0.5 | 0.6 | 5.4 | 14.4 | 45 |
| 20(16/32) | 4 x 0.50 | 0.5 | 0.6 | 5.8 | 19.2 | 55 |
| 18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 5.5 | 14.4 | 46 |
| 18(24/32) | 3 x 0.75 | 0.5 | 0.6 | 6 | 21.6 | 59 |
| 18(24/32) | 4 x 0.75 | 0.5 | 0.6 | 6.5 | 28.8 | 72 |
| 18(24/32) | 5 x 0.75 | 0.5 | 0.6 | 7.1 | 36.0 | 87 |
| H03VVH2-F | ||||||
| 20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 3.2 x 5.2 | 9.7 | 32 |
| 18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 3.4 x 5.6 | 14.4 | 35 |
