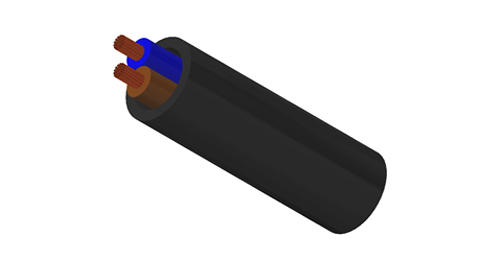

This product is a halogen-free, low-smoke, flame-retardant flexible cable, suitable for indoor fixed wiring with high requirements for fire safety. In the event of a fire, the cable features low smoke emission, halogen-free composition, and minimal release of corrosive gases, significantly enhancing personnel evacuation safety and reducing equipment corrosion risks.
CEI 20-20/14, CEI 20-35 (EN60332-1), CEI 20-37 (EN50267), EN50363,
CE low voltage directive 73/23/EEC & 93/68/EEC, ROHS compliant
Technical Characteristics

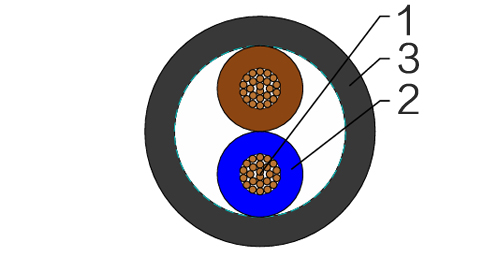

| Fine bare copper strands |
| Strands to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383 |
| Thermoplastic TI6 core insulation |
| Color code VDE-0293-308 |
| Green-yellow grounding (3 conductors and above) |
| Halogen-fee thermoplastic TM7 outer jacket |
| Black (RAL 9005) or White (RAL 9003) |
| Working voltage | 300/300 volts(H03Z1Z1-F), 300/500 volts(H05Z1Z1-F) |
| Test voltage | 2000 volts(H03Z1Z1-F), 2500 volts(H05Z1Z1-F) |
| Flexing bending radius | 7.5 x O |
| Fixed bending radius | 4.0 x O |
| Flexing Temperature | -5oC to +70oC |
| Fixed Temperature | -40oC to +70oC |
| Short circuit temperature | +160o C |
| Insulation resistance | 20 MΩ x km |
| Smoke density acc. to EN 50268 / IEC 61034 | |
| Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2 | |
| Flame test | flame-retardant acc. to EN 50265-2-1, IEC 60332.1 |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| (H)03 Z1Z1-F | ||||||
| 20(16/32) | 2 x 0. 5 | 0.5 | 0.6 | 5.0 | 9.6 | 39 |
| 20(16/32) | 3 x 0. 5 | 0.5 | 0.6 | 5.3 | 14.4 | 46 |
| 20(16/32) | 4 x 0. 5 | 0.5 | 0.6 | 5.8 | 19.2 | 56 |
| 18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 5.4 | 14.4 | 47 |
| 18(24/32) | 3 x 0.75 | 0.5 | 0.6 | 5.7 | 21.6 | 55 |
| 18(24/32) | 4 x 0.75 | 0.5 | 0.6 | 6.3 | 29.0 | 69 |
| (H)05 Z1Z1-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.2 | 14.4 | 58 |
| 18(24/32) | 3 x 0.75 | 0..7 | 0.8 | 6.6 | 21.6 | 68 |
| 18(24/32) | 4 x 0.75 | 0.8 | 0.8 | 7.1 | 29 | 81 |
| 18(24/32) | 5 x 0.75 | 0.8 | 0.9 | 8 | 36 | 102 |
| 17(32/32) | 2 x 1 | 0.6 | 0.8 | 6.6 | 19 | 67 |
| 17(32/32) | 3 x 1 | 0.8 | 0.8 | 6.9 | 29 | 81 |
| 17(32/32) | 4 x 1 | 0.8 | 0.9 | 7.7 | 38 | 101 |
| 17(32/32) | 5 x 1 | 0.8 | 0.9 | 8.4 | 48 | 107 |
| 16(30/30) | 2 x 1.5 | 0.7 | 0.8 | 7.4 | 29 | 87 |
| 16(30/30) | 3 x 1.5 | 0.8 | 0.9 | 8.1 | 43 | 109 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.0 | 9 | 58 | 117 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.1 | 10 | 72 | 169 |
| 14(50/30) | 2 x 2.5 | 0.8 | 1.0 | 9.3 | 48 | 138 |
| 14(50/30) | 3 x 2.5 | 1.0 | 1.1 | 10.1 | 72 | 172 |
| 14(50/30) | 4 x 2.5 | 1.0 | 1.1 | 11 | 96 | 210 |
| 14(50/30) | 5 x 2.5 | 1.0 | 1.2 | 12.3 | 120 | 260 |
| 12(56/28) | 2 x 4 | 0.8 | 1.1 | 10.6 | 76.8 | 190 |
| 12(56/28) | 3 x 4 | 1.0 | 1.2 | 11.5 | 115.2 | 242 |
| 12(56/28) | 4 x 4 | 1.0 | 1.4 | 12.5 | 153.6 | 298 |
| 12(56/28) | 5 x 4 | 1.0 | 1.4 | 14.1 | 192 | 371 |
