The H05V-R and H07V-R series PVC-insulated cables are specifically designed and manufactured for high-demand applications that comply with European electrical standards. These cables strictly adhere to international standards such as VDE, IEC, and the CE Low Voltage Directive, offering excellent electrical performance, mechanical properties, and flame-retardant characteristics.
STANDARD AND APPROVAL
CEI 20-20/3 , CEI 20-35 (EN60332-1), CEI 20-52,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
Technical Characteristics

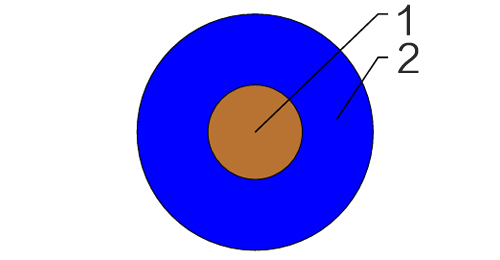

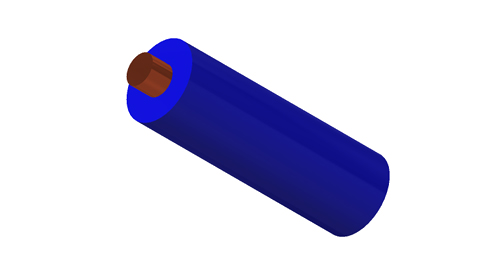

| Bare copper solid/strands conductor |
| Strands to VDE-0295 Class-2, IEC 60228 Cl-2 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
| Working voltage | 300/500 volts(H05V-R), 450/750 volts(H07V-R) |
| Test voltage | 2000 volts(H05V-R), 2500 volts(H07V-R) |
| Flexing bending radius | 15 x O |
| Static bending radius | 15 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -30oC to +80oC |
| Short circuit temperature | +160oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| H05V-R | |||||
| 20(7/29) | 1 x 0.5 | 0.6 | 2.2 | 4.8 | 9 |
| 18(7/27) | 1 x 0.75 | 0.6 | 2.4 | 7.2 | 12 |
| 17(7/26) | 1 x 1 | 0.6 | 2.6 | 9.6 | 15 |
| H07V-R | |||||
| 16(7/24) | 1 x 1.5 | 0.7 | 3.0 | 14.4 | 23 |
| 14(7/22) | 1 x 2.5 | 0.8 | 3.6 | 24 | 35 |
| 12(7/20) | 1 x 4 | 0.8 | 4.2 | 39 | 51 |
| 10(7/18) | 1 x 6 | 0.8 | 4.7 | 58 | 71 |
| 8(7/16) | 1 x 10 | 1 | 6.1 | 96 | 120 |
| 6(7/14) | 1 x 16 | 1 | 7.2 | 154 | 170 |
| 4(7/12) | 1 x 25 | 1.2 | 8.4 | 240 | 260 |
| 2(7/10) | 1 x 35 | 1.2 | 9.5 | 336 | 350 |
| 1(19/13) | 1 x 50 | 1.4 | 11.3 | 480 | 480 |
| 2/0(19/11) | 1 x 70 | 1,4 | 12.6 | 672 | 680 |
| 3/0(19/10) | 1 x 95 | 1,6 | 14.7 | 912 | 930 |
| 4/0(37/12) | 1 x 120 | 1,6 | 16.2 | 1152 | 1160 |
| 300MCM(37/11) | 1 x 150 | 1,8 | 18.1 | 1440 | 1430 |
| 350MCM(37/10) | 1 x 185 | 2,0 | 20.2 | 1776 | 1780 |
| 500MCM(61/11) | 1 x 240 | 2,2 | 22.9 | 2304 | 2360 |
| 1 x 300 | 2.4 | 24.5 | 2940 | ||
| 1 x 400 | 2.6 | 27.5 | 3740 | ||
