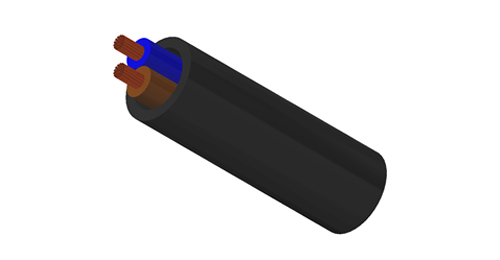

This series of cables features dual protection with high-quality EPR (ethylene propylene rubber) insulation and CSP (chlorosulfonated polyethylene rubber) sheathing, specifically designed for demanding industrial environments. The cables offer excellent resistance to oil, grease, moisture, and weathering, making them suitable for use in dry, damp, or oily environments while withstanding certain mechanical stresses. Their flexible structure is particularly well-suited for applications requiring frequent movement or bending, making them an ideal power connection solution for industrial workshops, machinery, heating plates, portable lighting, agricultural equipment, and RV camping gear.
CEI 20-19/12, CEI 20-35 (EN 60332-1), BS6500, BS7919,
ROHS compliant, VDE 0282 Part-12, IEC 60245-4, CE Low-Voltage
Technical Characteristics

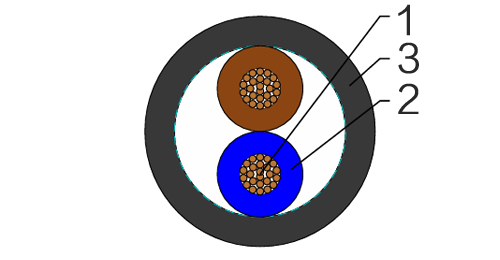

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
| Color code VDE-0293-308 |
| CSP(Chlorosulphonated Polyethylene) outer jacket EM7 |
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 6.0 x O |
| Fixed bending radius | 4.0 x O |
| Temperature Range | -20oC to +90oC |
| Maximum Short Circuit Temperature | +250oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.1 | 29 | 54 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.7 | 43 | 68 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 7.3 | 58 | 82 |
| 18(24/32) | 5 x 0.75 | 0.6 | 1.0 | 8.1 | 72 | 108 |
| 17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.6 | 19 | 65 |
| 17(32/32) | 3 x 1 | 0.6 | 0.9 | 7.0 | 29 | 78 |
| 17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.6 | 38 | 95 |
| 17(32/32) | 5 x 1 | 0.6 | 1.0 | 8.5 | 51 | 125 |
