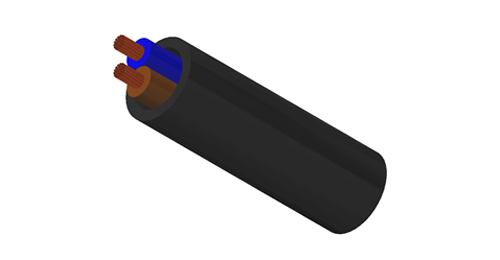

This series of cables is manufactured from high-performance synthetic rubber, offering excellent temperature resistance, oil resistance, and mechanical strength. Designed specifically to withstand complex and demanding industrial environments, their versatile characteristics make them an ideal choice for reliable power connections across numerous fields.Outstanding Environmental Adaptability : Capable of long-term stable operation in dry, damp, oily, or greasy environments, and resistant to harsh weather conditions and moderate mechanical stress.
Reliable Operation Across a Wide Temperature Range : Features a broad operating temperature range (-40°C to +90°C), making it particularly suitable for applications involving continuous high temperatures up to 90°C and contact with hot oil or grease.
Excellent Resistance to Oil and Grease : Specially recommended for use in factories and industrial equipment involved in the handling, processing, and transportation of grease, lubricating oil, or oil emulsions.
Enhanced Torsional Performance : The unique conductor structure and materials provide excellent torsional resistance (up to 150°/m), fully meeting the stringent requirements for trailing cables inside wind turbine towers.
High Safety Standards : Complies with multiple international standards and possesses features such as flame retardancy and low smoke zero halogen (referencing IEC 60754), ensuring safety and reliability.
STANDARD AND APPROVAL
CEI 20-19 p.12, CEI 20-35 (EN 60332-1), IEMMEQU HAR IEC 60245-4, IEC 60754-1/2, ROHS compliant
Technical Characteristics

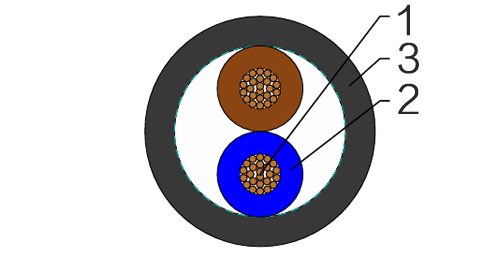

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
| Color code VDE-0293-308 |
| Special polychloroprene rubber outer jacket EM7 |
| Working voltage | 450/750 volts |
| Test voltage | 2500 volts |
| Flexing bending radius | 6.0 x O |
| Fixed bending radius | 4.0 x O |
| Temperature Range | -40oC to +90oC |
| Wind energy | -15oC to +90oC |
| Maximum Short Circuit Temperature | +250oC |
| Flame retardant | IEC 60332.1C2/NF C 32-070 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | |
| 17(32/32) | 2 x 1 | 0.8 | 1.3 | 8.2 | 93 |
| 17(32/32) | 3 x 1 | 0.8 | 1.4 | 8.9 | 114 |
| 17(32/32) | 4 x 1 | 0.8 | 1.5 | 9.8 | 139 |
| 16(30/30) | 1 x 1.5 | 0.8 | 1.4 | 5.9 | 50 |
| 16(30/30) | 2 x 1.5 | 0.8 | 1.5 | 9.3 | 118 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.6 | 10.0 | 144 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.7 | 11.0 | 177 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.8 | 12.1 | 226 |
| 16(30/30) | 7 x 1.5 | 0.8 | 2.6 | 14.7 | 385 |
| 16(30/30) | 12 x 1.5 | 0.8 | 2.9 | 18.8 | 516 |
| 16(30/30) | 19 x 1.5 | 0.8 | 3.2 | 22.0 | 800 |
| 16(30/30) | 24 x 1.5 | 0.8 | 3.5 | 25.7 | 882 |
| 14(50/30) | 1 x 2.5 | 0.9 | 1.4 | 6.5 | 65 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.7 | 10.9 | 172 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.8 | 11.7 | 210 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.9 | 12.8 | 257 |
| 14(50/30) | 5 x 2.5 | 0.9 | 2 | 14.1 | 329 |
| 14(50/30) | 7 x 2.5 | 0.9 | 2.8 | 17.1 | 445 |
| 14(50/30) | 12 x 2.5 | 0.9 | 3.1 | 22.1 | 702 |
| 14(50/30) | 19 x 2.5 | 0.9 | 3.5 | 26.0 | 1030 |
| 14(50/30) | 24 x 2.5 | 0.9 | 3.9 | 30.4 | 1312 |
| 12(56/28) | 1 x 4 | 1 | 1.5 | 7.4 | 89 |
| 12(56/28) | 2 x 4 | 1 | 1.8 | 12.6 | 238 |
| 12(56/28) | 3 x 4 | 1 | 1.9 | 13.5 | 292 |
| 12(56/28) | 4 x 4 | 1 | 2 | 14.8 | 359 |
| 12(56/28) | 5 x 4 | 1 | 2.2 | 16.3 | 422 |
| 12(56/28) | 7 x 4 | 1 | 3.1 | 19.6 | 618 |
| 10(84/28) | 1 x 6 | 1 | 1.6 | 8.1 | 115 |
| 10(84/28) | 2 x 6 | 1 | 1.8 | 13.8 | 282 |
| 10(84/28) | 3 x 6 | 1 | 2.1 | 14.8 | 355 |
| 10(84/28) | 4 x 6 | 1 | 2.3 | 16.4 | 449 |
| 10(84/28) | 5 x 6 | 1.2 | 3.6 | 18.1 | 567 |
| 8(80/26) | 1 x 10 | 1.2 | 1.8 | 10.4 | 190 |
| 8(80/26) | 2 x 10 | 1.2 | 2.3 | 19.4 | 539 |
| 8(80/26) | 3 x 10 | 1.2 | 3.3 | 20.7 | 674 |
| 8(80/26) | 4 x 10 | 1.2 | 3.4 | 22.6 | 833 |
| 8(80/26) | 5 x 10 | 1.2 | 3.6 | 24.8 | 1010 |
| 6(128/26) | 1 x 16 | 1.2 | 1.9 | 11.6 | 259 |
| 6(128/26) | 2 x 16 | 1.2 | 2.8 | 21.8 | 722 |
| 6(128/26) | 3 x 16 | 1.2 | 3.5 | 23.3 | 913 |
| 6(128/26) | 4 x 16 | 1.2 | 3.6 | 25.4 | 1138 |
| 6(128/26) | 5 x 16 | 1.2 | 3.9 | 28.1 | 1400 |
| 4(200/26) | 1 x25 | 1.4 | 2 | 13.7 | 375 |
| 4(200/26) | 2 x 25 | 1.4 | 3.3 | 25.9 | 1043 |
| 4(200/26) | 4 x 25 | 1.4 | 4.1 | 30.8 | 1714 |
| 4(200/26) | 5 x 25 | 1.4 | 4.4 | 33.9 | 2096 |
| 2(280/26) | 1 x 35 | 1.4 | 2.2 | 15.4 | 492 |
| 2(280/26) | 3 x 35 | 1.4 | 4.1 | 31.0 | 1745 |
| 2(280/26) | 4 x 35 | 1.4 | 4.4 | 34.3 | 2204 |
| 2(280/26) | 5 x 35 | 1.4 | 4.7 | 39.6 | 2810 |
| 1(400/26) | 1 x 50 | 1.6 | 2.4 | 17.7 | 675 |
| 1(400/26) | 3 x 50 | 1.6 | 3.6 | 35.8 | 2409 |
| 1(400/26) | 4 x 50 | 1.6 | 4.8 | 39.6 | 3029 |
| 1(400/26) | 5 x 50 | 1.6 | 5.1 | 44.1 | 4050 |
| 2/0(356/24) | 1 x 70 | 1.6 | 2.6 | 20.0 | 908 |
| 2/0(356/24) | 3 x 70 | 1.6 | 4.2 | 40.5 | 3211 |
| 2/0(356/24) | 4 x 70 | 1.6 | 5.2 | 44.9 | 4121 |
| 3/0(485/24) | 1 x 95 | 1.8 | 2.8 | 22.1 | 1171 |
| 3/0(485/24) | 3 x 95 | 1.8 | 4.8 | 45.1 | 4210 |
| 3/0(485/24) | 4 x 95 | 1.8 | 5.9 | 50.4 | 5361 |
| 4/0(614/24) | 1x 120 | 1.8 | 3 | 24.5 | 1445 |
| 4/0(614/24) | 3 x 120 | 1.8 | 4.8 | 49.9 | 5205 |
| 4/0(614/24) | 4 x 120 | 1.8 | 6 | 55.3 | 6546 |
| 300 MCM (765/24) | 1 x 150 | 2 | 3.2 | 26.9 | 1783 |
| 300 MCM (765/24) | 3 x 150 | 2 | 5.2 | 54.8 | 6389 |
| 300 MCM (765/24) | 4 x 150 | 2 | 6.4 | 60.9 | 8095 |
| 350 MCM (944/24) | 1 x 185 | 2.2 | 3.4 | 28.9 | 2125 |
| 350 MCM (944/24) | 4 x 185 | 2.2 | 6.8 | 65.7 | 9652 |
| 500 MCM (1221/24) | 1x 240 | 2.4 | 3.5 | 32.6 | 2733 |
| 500 MCM (1221/24) | 4x 240 | 2.4 | 7.2 | 75.5 | 12614 |
| - | 1 x 300 | 2.6 | 3.6 | 36.5 | 3348 |
