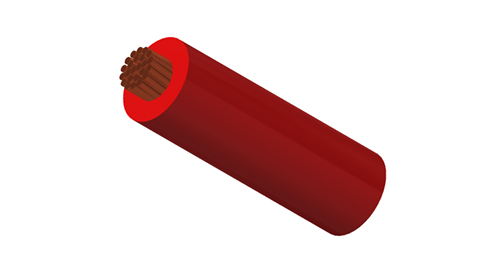

The HH05VK/H07V-K UL Series PVC Flexible Single-Core Wire is a high-quality cable product that has obtained extensive international certifications, specifically designed to meet the stringent requirements of the global market for electrical equipment wiring. This product complies with multiple international standards, including the European Union (HAR) and North American (UL/CSA) standards. It is suitable for internal wiring in various electrical appliances, machine tools, control systems, switchgear, and distribution panels, making it an ideal choice for internationally compatible equipment and MRO (Maintenance, Repair, and Operations) replacements.
NF C 32-201-7
HD 21.7 S2
VDE-0281 Part-3
UL-Standard and Approval 1063 MTW
UL-AWM Style 1015
CSA TEW
CSA-AWM I A/B
FT-1
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant
Technical Characteristics

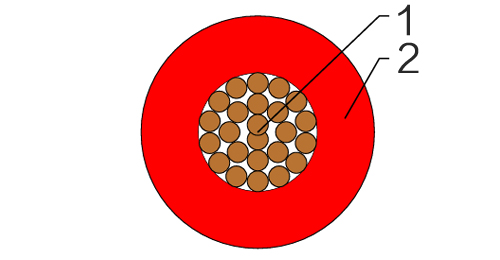

| Fine tinned copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5, HD383 Class-5 |
| Special PVC TI3 core insulation |
| Cores to VDE-0293 colors |
| H05V-K UL (22, 20 & 18 AWG) |
| H07V-K UL (16 AWG and Larger) |
| X05V-K UL & X07V-K UL for non-HAR colors |
| Working voltage | 300/500v (H05V-K UL) |
| Working voltage | 450/750v (H07V-K UL) |
| Working voltage UL/CSA | 600v AC, 750v DC |
| Test voltage | 2500 volts |
| Flexing/Static bending radius | 10-15 x O |
| Temperature HAR/IEC | -40oC to +70oC |
| Temperature UL-AWM | -40oC to +105oC |
| Temperature UL-MTW | -40oC to +90oC |
| Temperature CSA-TEW | -40oC to +105oC |
| Flame retardant | NF C 32-070, FT-1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| H05V-K | |||||
| 20(16/32) | 1 x 0.5 | 0.6 | 2.5 | 4.9 | 11 |
| 18(24/32) | 1 x 0.75 | 0.6 | 2.7 | 7.2 | 14 |
| 17(32/32) | 1 x 1 | 0.6 | 2.9 | 9.6 | 17 |
| H07V-K | |||||
| 16(30/30) | 1 x 1.5 | 0,7 | 3.1 | 14.4 | 20 |
| 14(50/30) | 1 x 2.5 | 0,8 | 3.7 | 24.0 | 32 |
| 12(56/28) | 1 x 4 | 0,8 | 4.4 | 38.0 | 45 |
| 10(84/28) | 1 x 6 | 0,8 | 4.9 | 58.0 | 63 |
| 8(80/26) | 1 x 10 | 1,0 | 6.8 | 96.0 | 120 |
| 6(128/26) | 1 x 16 | 1,0 | 8.9 | 154.0 | 186 |
| 4 (200/26) | 1 x 25 | 1,2 | 10.1 | 240 | 261 |
| 2 (280/26) | 1 x 35 | 1,2 | 11.4 | 336 | 362 |
| 1 (400/26) | 1 x 50 | 1,4 | 14.1 | 480 | 539 |
| 2/0 (356/24) | 1 x 70 | 1,4 | 15.8 | 672 | 740 |
| 3/0 (485/24) | 1 x 95 | 1,6 | 18.1 | 912 | 936 |
| 4/0 (614/24) | 1 x 120 | 1,6 | 19.5 | 1152 | 1184 |
