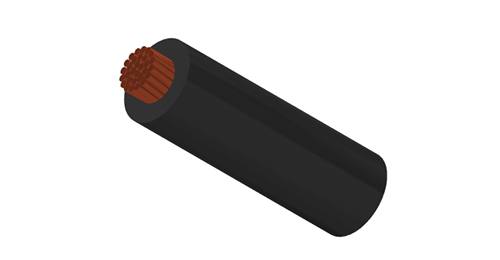

This series of cables is specifically designed for internal wiring of equipment with rated voltages up to 1000V AC or 750V DC. It is suitable for internal connections in electrical installations such as distribution boxes and switchgear, as well as for protective wiring in lighting systems. The product complies with multiple international safety standards and utilizes high-quality materials and precise manufacturing processes to ensure stable and safe power transmission in specific application environments.
STANDARD AND APPROVAL
CEI 20-20, CEI20-52, HD 21.3 S3
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
Technical Characteristics
| Fine bare copper strands |

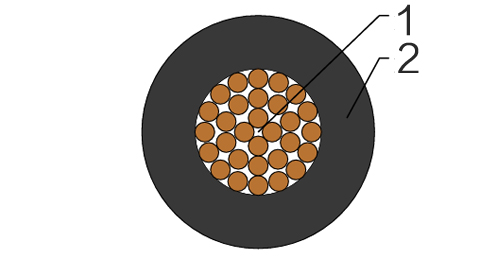

| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
| Working voltage | 450/750V |
| Test voltage | 2500 volts |
| Flexing bending radius | 12.5 x O |
| Static bending radius | 12.5 x O |
| Flexing temperature | -5o C to +70o C |
| Static temperature | -30o C to +80o C |
| Short circuit temperature | +160o C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 16(30/30) | 1 x 1.5 | 0,7 | 3.1 | 14.4 | 20 |
| 14(50/30) | 1 x 2.5 | 0,8 | 3.6 | 24.0 | 31 |
| 12(56/28) | 1 x 4 | 0,8 | 4.3 | 38.0 | 48 |
| 10(84/28) | 1 x 6 | 0,8 | 4.9 | 58.0 | 69 |
| 8(80/26) | 1 x 10 | 1,0 | 6.4 | 96.0 | 121 |
| 6(128/26) | 1 x 16 | 1,0 | 8.1 | 154.0 | 211 |
| 4(200/26) | 1 x 25 | 1,2 | 9.8 | 240 | 303 |
| 2 (280/26) | 1 x 35 | 1,2 | 11.1 | 336 | 417 |
| 1 (400/26) | 1 x 50 | 1,4 | 13.1 | 480 | 539 |
| 2/0 (356/24) | 1 x 70 | 1,4 | 15.5 | 672 | 730 |
| 3/0 (485/24) | 1 x 95 | 1,6 | 17.2 | 912 | 900 |
| 4/0 (614/24) | 1 x 120 | 1,6 | 19.7 | 1152 | 1135 |
| 300 MCM (765/24) | 1 x 150 | 1,8 | 21.3 | 1440 | 1410 |
| 350 MCM (944/24) | 1 x 185 | 2,0 | 23.4 | 1776 | 1845 |
| 500MCM(1225/24) | 1 x 240 | 2,2 | 27.1 | 2304 | 2270 |
