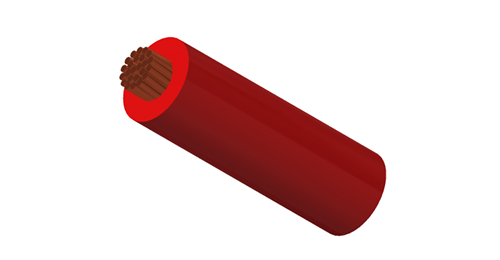

The H05V2-K UL and H07V2-K UL series are internationally multi-certified PVC-insulated single-core flexible wires, compliant with HAR/IEC, UL/CSA, and AWM/MTW standards. The products feature a wider operating temperature range and higher working voltage ratings, specifically designed to meet the stringent requirements of the global market for electrical equipment wiring.
STANDARD AND APPROVAL
NF C 32-201-7
HD 21.7 S2
H05V2-K / H07V2-K
VDE-0281 Part-3
UL-Standard and Approval 1063 MTW
UL-AWM Style 10269
CSA TEW
CSA-AWM 1 A/B
FT-1
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant
Technical Characteristics

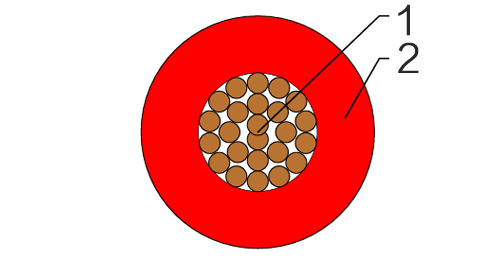

| Fine tinned copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Special PVC core insulation |
| Cores to VDE-0293 colors on chart |
| H05V2-K UL (22, 20 & 18 AWG) |
| H07V2-K UL (16 AWG and Larger) |
| X05V2-K UL & X07V2-K UL for non-HAR colors |
| Working voltage | 300/500v (H05V2-K UL) |
| Working voltage | 450/750v (H07V2-K UL) |
| Working voltage UL(MTW) & CSA | 600v |
| Working voltage UL (AWM) | 1000v |
| Test voltage | 2500 volts (4000 volts UL) |
| Flexing/Static bending radius | 10-15 x O |
| Temperature HAR/IEC | -40oC to +90oC |
| Temperature UL-AWM | -40oC to +105oC |
| Temperature UL-MTW | -40oC to +90oC |
| Temperature CSA-TEW | -40oC to +105oC |
| Flame retardant | NF C 32-070, FT-1, UL VW-1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/Km | kg/Km | |
| 20(16/32) | 1 x 0.5 | 0.6 | 2.5 | 4.8 | 11 |
| 18(24/32) | 1 x 0.75 | 0.6 | 2.7 | 7.2 | 14 |
| 17(32/32) | 1 x 1 | 0.6 | 2.9 | 9.6 | 16 |
| 16(30/30) | 1 x 1.5 | 0,7 | 3.1 | 14.4 | 20 |
| 14(50/30) | 1 x 2.5 | 0,8 | 3.7 | 24 | 32 |
| 12(56/28) | 1 x 4 | 0,8 | 4.4 | 38 | 50 |
| 10(84/28) | 1 x 6 | 0,8 | 4.9 | 58 | 66 |
| 8(80/26) | 1 x 10 | 1,0 | 6.8 | 96 | 121 |
| 6(128/26) | 1 x 16 | 1,0 | 8.9 | 154 | 211 |
| 4(200/26) | 1 x 25 | 1,2 | 10.1 | 240 | 303 |
| 2(280/26) | 1 x 35 | 1,2 | 11.4 | 336 | 407 |
| 1(400/26) | 1 x 50 | 1,4 | 14.1 | 480 | 600 |
| 2/0(356/24) | 1 x 70 | 1,4 | 15.8 | 672 | 790 |
| 3/0(485/24) | 1 x 95 | 1,6 | 18.1 | 912 | 1067 |
| 4/0(614/24) | 1 x 120 | 1,6 | 19.5 | 1115 | 1277 |
