This series of cables is specifically designed for fixed and protected wiring inside electrical equipment and within and around lighting fixtures. Suitable for surface mounting or installation in embedded conduits for signal and control circuits, it serves as an ideal connection solution for various low-voltage control systems.
CEI20-20/7, HD 21.7 S2, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
Technical Characteristics

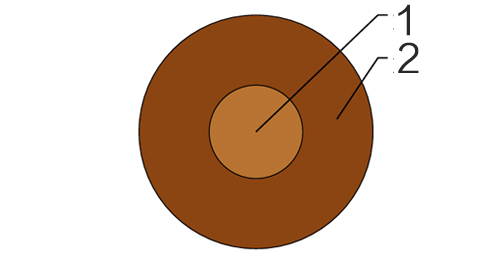

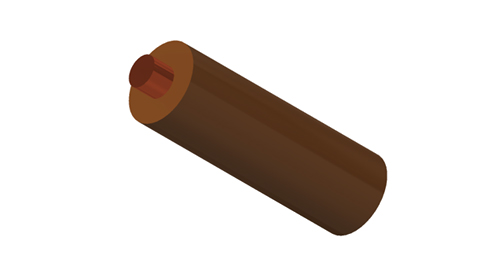

| Solid bare copper single wire |
| Solid to DIN VDE 0281-3,NF C 32-201-3 and IEC 60227-3 |
| Special PVC TI3 ore insulation |
| Cores to VDE-0293 colors on chart |
| H05V-U (20, 18 & 17 AWG) |
| H07V-U (16 AWG and Larger) |
| Working voltage | 300/500v (H05V-U) |
| Working voltage | 450/750v (H07V-U) |
| Test voltage | 2000V(H05V-U)/2500V (H07V-U) |
| Flexing bending radius | 15 x O |
| Static bending radius | 15 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -30oC to +80oC |
| Short circuit temperature | +160oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 20 | 1 x 0.5 | 0.6 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 0.6 | 2.2 | 7.2 | 11 |
| 17 | 1 x 1 | 0.6 | 2.4 | 9.6 | 14 |
| 16 | 1 x 1.5 | 0.7 | 2.9 | 14.4 | 21 |
| 14 | 1 x 2.5 | 0.8 | 3.5 | 24.0 | 33 |
| 12 | 1 x 4 | 0.8 | 3.9 | 38.0 | 49 |
| 10 | 1 x 6 | 0.8 | 4.5 | 58.0 | 69 |
| 8 | 1 x 10 | 1.0 | 5.7 | 96.0 |
