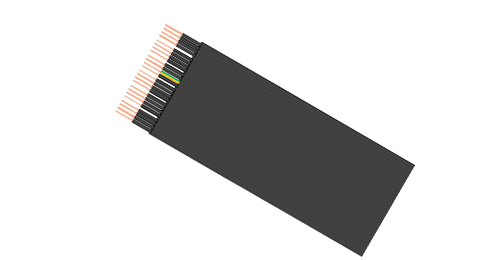

This series of flat cables is specifically designed for traveling installation in elevators (both passenger and freight elevators), meeting the demanding requirements of high-speed and high-intensity elevator operation. The cables feature a compact structure and excellent flexibility, making them an ideal solution for power transmission and control signals within elevator shafts.
H05V3V3H6-F Type Cable : Suitable for elevator systems with operating speeds not exceeding 4.0 m/s. The recommended maximum free-hanging height is 45 meters, and the maximum travel distance is 80 meters.
H05V3V3D3H6-F Type Cable : Specifically designed for high-speed elevators, suitable for scenarios with operating speeds between 4.0 m/s and 6.3 m/s. It incorporates reinforced load-bearing elements for enhanced mechanical performance. The recommended maximum free-hanging height is 80 meters, and the maximum travel distance can reach 150 meters.
STANDARD AND APPROVAL
NF C 32-070
CSA C22.2 N° 49

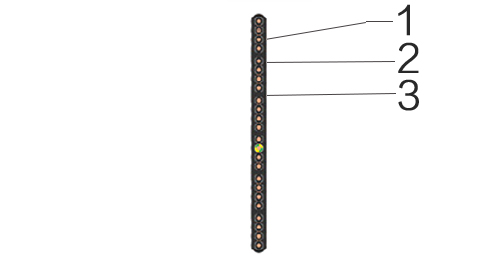

| Bare copper strand conductor |
| acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6 |
| PVC T15 core insulation |
| Color coded to VDE 0293-308, >6 wires black with white numerals with green/yellow wire |
| Black PVC TM 4 sheath |
| Working voltage | 300/500V |
| Test voltage | 2000V |
| Flexing temperature | - 35°C - +70°C |
| Flame retardant | NF C 32-070 |
| Insulation resistance | 350 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Dimension | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | kg/km | kg/km | |
| H05V3V3H6-F | ||||
| 18(24/32) | 12 x 0.75 | 33.7 x 4.3 | 79 | 251 |
| 18(24/32) | 16 x 0.75 | 44.5 x 4.3 | 105 | 333 |
| 18(24/32) | 18 x 0.75 | 49.2 x 4.3 | 118 | 371 |
| 18(24/32) | 20 x 0.75 | 55.0 x 4.3 | 131 | 415 |
| 18(24/32) | 24 x 0.75 | 65.7 x 4.3 | 157 | 496 |
| 17(32/32) | 12 x 1 | 35.0 x 4.4 | 105 | 285 |
| 17(32/32) | 16 x 1 | 51.0 x 4.4 | 157 | 422 |
| 17(32/32) | 20 x 1 | 57.0 x 4.4 | 175 | 472 |
| 17(32/32) | 24 x 1 | 68.0 x 4.4 | 210 | 565 |
| H05V3V3D3H6-F | ||||
| 18(24/32) | 20 x 0.75 | 61.8 x 4.2 | 131 | 462 |
| 18(24/32) | 24 x 0.75 | 72.4 x 4.2 | 157 | 546 |
| 17(32/32) | 12 x 1 | 41.8 x 4.3 | 105 | 330 |
| 17(32/32) | 14 x 1 | 47.8 x 4.3 | 122 | 382 |
| 17(32/32) | 18 x 1 | 57.8 x 4.3 | 157 | 470 |
| 17(32/32) | 22 x 1 | 69.8 x 4.3 | 192 | 572 |
| 17(32/32) | 24 x 1 | 74.8 x 4.3 | 210 | 617 |
