APPLICATION AND DESCRIPTION
This series of highly flexible control cables is specifically designed for demanding applications that require frequent movement and bending. They are widely used in elevator systems (passenger/freight elevators), moving parts of mechanical equipment, and various automation control systems. The cables are constructed with high-quality PVC material, offering excellent flexibility, wear resistance, and the ability to withstand environmental interference.
STANDARD AND APPROVAL

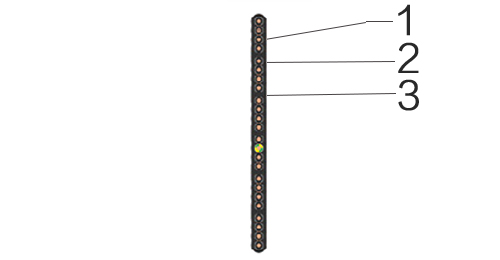

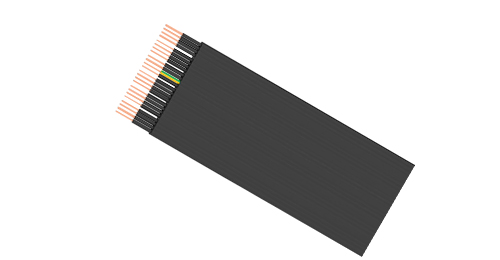

CABLE CONSTRUCTION
| Bare copper strand conductor acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6 |
| PVC T12 core insulation |
| Color coded to VDE 0293-308, >6 wires black with white numerals with green/yellow wire |
| Black PVC TM 2 sheath |
TECHNICAL CHARACTERISTICS
| Working voltage | 300/500 V |
| Test voltage | 2000V |
| Minimum bending radius | 10 × O |
| Flexing temperature | -30°C - +70°C |
| Static temperature | -40°C - +70°C |
| Flame retardant | NF C 32-070 |
| Insulation resistance | 350 MΩ x km |
CABLE PARAMETER
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Dimension | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | kg/km | kg/km |
| 18(24/32) | 20 x 0.75 | 61.8 x 4.2 | 131 | 462 |
| 18(24/32) | 24 x 0.75 | 72.4 x 4.2 | 157 | 546 |
| 17(32/32) | 12 x 1 | 41.8 x 4.3 | 105 | 330 |
| 17(32/32) | 14 x 1 | 47.8 x 4.3 | 122 | 382 |
| 17(32/32) | 18 x 1 | 57.8 x 4.3 | 157 | 470 |
| 17(32/32) | 24 x 1 | 74.8 x 4.3 | 210 | 617 |
