This cable is strictly designed in accordance with BS 8436:2011 standard. It is a multi-core low-voltage cable integrating flame-retardant and fire-resistant, halogen-free and low-smoke, safe and environmentally friendly properties into one, with a rated voltage of 300/500V. Suitable for low-voltage power distribution systems with strict requirements for safety performance, such as building electrical systems, industrial equipment, and public places, it provides reliable protection for your electrical wiring.
Basic design to BS 8436:2011
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
300/500V

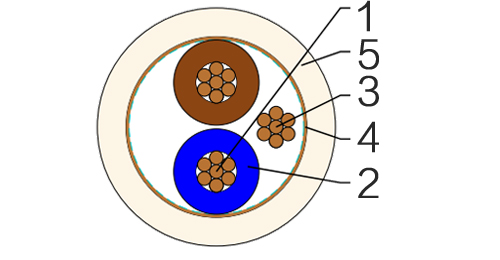

Conductor : Tinned annealed copper conductor, solid or stranded according to BS EN 60228 class 1, class 2 or class 5.
Insulation : Thermosetting XLPE type GP 8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to EN 50363-5 or crosslinked elastomeric GP 4/GP 6 according to BS 7655-1.2 can be offered as option.
CPC (Circuit Protective Conductor) : Uninsulated tinned annealed copper conductor conforming to BS EN 13630:2002.
Screen : One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically or as a combination of both, with the metallic element in contact with the uninsulated circuit protective conductor.
Outer Sheath : LSZH type LTS 3 according to BS 7655-6.1.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
Insulation Colour :
2-core + uninsulated circuit protective conductor : Brown, blue or brown, brown.
3-core + uninsulated circuit protective conductor : Brown, black, grey.
4-core + uninsulated circuit protective conductor : Blue, brown, black, grey.
Sheath Colour : White; other colours can be offered upon request.
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds) : 250°C
Minimum bending radius : 6 × Overall Diameter
| Conductor | FLP300-ROZ1-U/R/K | ||||
|---|---|---|---|---|---|
| No. of Cores × Cross-sectional Area | Conductor Class | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
| No.×mm² | mm | mm | mm | kg/km | |
| 2×1.0 | 1/2/5 | 0.6 | 0.9 | 8.0 | 80 |
| 2×1.5 | 1/2/5 | 0.7 | 0.9 | 8.5 | 100 |
| 2×2.5 | 1/2/5 | 0.7 | 1.0 | 10.5 | 140 |
| 2×4 | 1/2/5 | 0.7 | 1.1 | 12.5 | 190 |
| 3×1.0 | 1/2/5 | 0.6 | 0.9 | 8.5 | 105 |
| 3×1.5 | 1/2/5 | 0.7 | 0.9 | 9.5 | 120 |
| 3×2.5 | 1/2/5 | 0.7 | 1.0 | 11.5 | 170 |
| 3×4 | 1/2/5 | 0.7 | 1.1 | 13.5 | 230 |
| 4×1.0 | 1/2/5 | 0.6 | 1.0 | 9.0 | 125 |
| 4×1.5 | 1/2/5 | 0.7 | 1.0 | 10.5 | 155 |
| 4×2.5 | 1/2/5 | 0.7 | 1.1 | 12.0 | 200 |
| 4×4 | 1/2/5 | 0.7 | 1.2 | 15.0 | 280 |
Conductor operating temperature : 70°C
Ambient temperature : 30°C
| Conductor Cross-sectional area | Ref. Method a (enclosed in conduit in thermally insulating wall etc.) | Ref. Method B (enclosed in conduit on a wall or in trunking etc.) | Ref. Method C (clipped direct) | Ref. Method E (free air or on a perforated cable tray etc. horizontal or vertical) | ||||
|---|---|---|---|---|---|---|---|---|
| 1 two-core cable*, single-phase a.c. or d.c. | 1 three-core or 1 fourcore cable*, three-phase a.c. | 1 two-core cable*, single-phase a.c. or d.c. | 1 three-core or 1 fourcore cable*, three-phase a.c. | 1 two-core cable*, single-phase a.c. or d.c. | 1 three-core or 1 fourcore cable*, three-phase a.c. | 1 two-core cable*, single-phase a.c. or d.c. | 1 three-core or 1 fourcore cable*, three-phase a.c. | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| mm² | A | A | A | A | A | A | A | A |
| 1.0 | 11 | 10 | 13 | 11.5 | 15 | 13.5 | 17 | 14.5 |
| 1.5 | 14 | 13 | 16.5 | 15 | 19.5 | 17.5 | 22 | 18.5 |
| 2.5 | 18.5 | 17.5 | 23 | 20 | 27 | 24 | 30 | 25 |
| 4 | 25 | 23 | 30 | 27 | 36 | 32 | 40 | 34 |
Note: With or without a protective conductor.
| Conductor cross-sectional area | Two-core cable, d.c. | Two-core cable, single-phase a.c. | Three- or four-core cable, three-phase a.c. |
|---|---|---|---|
| 1 | 2 | 3 | 4 |
| mm² | mV/A/m | mV/A/m | mV/A/m |
| 1.0 | 44 | 44 | 38 |
| 1.5 | 29 | 29 | 25 |
| 2.5 | 18 | 18 | 15 |
| 4 | 11 | 11 | 9.5 |
