LXV Low-Voltage Power Cable: A Safe and Reliable Power Transmission Solution
Designed specifically for low-voltage power systems, LXV cables provide safe and reliable power supply for your needs. Whether in indoor or outdoor environments, LXV cables deliver exceptional performance. They are widely suitable for various scenarios, including: building electrical systems, industrial applications, infrastructure, and special environments.
IEC 60502-1 NP2365

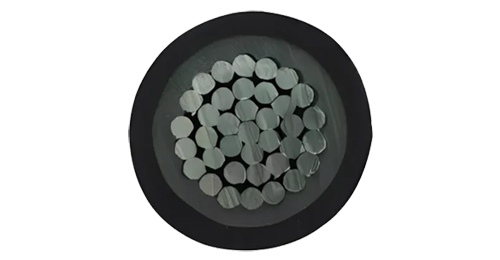

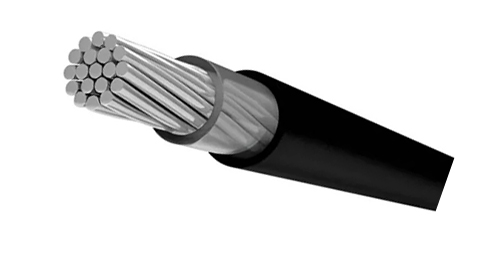

Aluminium conductor, class 1/class 2 to NP2363
XLPE insulation
Colour coded to HD 308
Not fibrous and not hygroscopic filler
Flexible PVC, type ST2 outer jacket
| Voltage Rating | 600/1000V |
| Test voltage | 3500 volts |
| Minimum bending radius | 12 x Ø |
| Operation temperature range | -15°C to 90°C |
| Short-circuit temperature | 250°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 1000 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| # x mm² | mm | kg/km |
| 1 x 16 | 9.0 | 100 |
| 1 x 25 | 10.5 | 145 |
| 1 x 35 | 12.0 | 175 |
| 1 x 50 | 13.0 | 230 |
| 1 x 70 | 15.0 | 300 |
| 1 x 95 | 17.0 | 395 |
| 1 x 120 | 18.5 | 460 |
| 1 x 150 | 20.5 | 590 |
| 1 x 185 | 22.5 | 720 |
| 1 x 240 | 25.5 | 910 |
| 1 x 300 | 28.0 | 1150 |
| 1 x 400 | 32.0 | 1400 |
| 1 x 500 | 35.0 | 1850 |
| 2 x 16 | 17.0 | 320 |
| 2 x 25 | 20.0 | 470 |
| 2 x 35 | 17.5 | 370 |
| 2 x 50 | 19.5 | 460 |
| 2 x 70 | 22.5 | 600 |
| 2 x 95 | 26.0 | 830 |
| 2 x 120 | 29.0 | 1020 |
| 2 x 150 | 31.5 | 1300 |
| 2 x 185 | 35.5 | 1550 |
| 2 x 240 | 39.5 | 1900 |
| 2 x 300 | 43.5 | 2350 |
| 3 x 16 | 17.5 | 380 |
| 3 x 25 | 21.0 | 530 |
| 3 x 35 | 20.0 | 510 |
| 3 x 50 | 22.5 | 620 |
| 3 x 70 | 26.5 | 880 |
| 3 x 95 | 30.0 | 1200 |
| 3 x 120 | 33.0 | 1500 |
| 3 x 150 | 37.0 | 1750 |
| 3 x 185 | 41.0 | 2200 |
| 3 x 240 | 46.5 | 2800 |
| 3 x 300 | 51.5 | 3500 |
| 4x 16 | 18.0 | 330 |
| 4x 25 | 22.5 | 480 |
| 4x 35 | 23.0 | 610 |
| 4x 50 | 26.0 | 770 |
| 4x 70 | 29.0 | 1020 |
| 4x 95 | 34.5 | 1350 |
| 4x 120 | 38.0 | 1750 |
| 4x 150 | 42.5 | 2050 |
| 4x 185 | 47.5 | 2600 |
| 4x 240 | 53.5 | 3400 |
| 4x 300 | 59.5 | 4200 |
