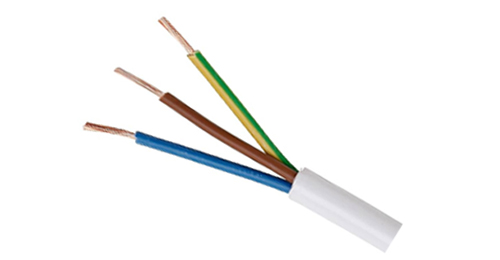

N05VV-U/R Portuguese Standard Industrial Cable: A Stable and Reliable Power Transmission Solution
The N05VV-U/R cable is a low-voltage power cable compliant with the Portuguese standard (NP - 2356/4), specifically designed for various power supply applications. This industrial cable is suitable for both indoor and outdoor environments and can be safely installed in cable trays , conduits , or even directly buried underground , providing reliable protection for your power system. It is widely used in power and switching stations , regional energy distribution , and various industrial plants . However, direct embedding in concrete is not recommended.
NP - 2356/4

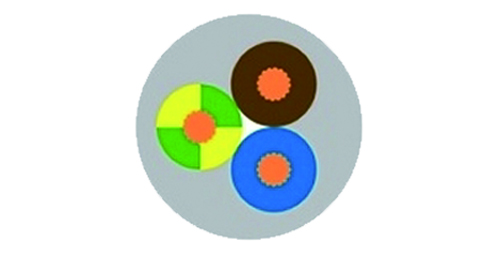

Solid copper conductor, class 1 to NP 2363
PVC insulation
Color coded to HD 308
Flexible PVC outer jacket
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 15 x Ø |
| Static bending radius | 12 x Ø |
| Flexing Temperature | -5ºC to +50ºC |
| Fixed installation temperature | - 40ºC to +70ºC |
| Flame retardant | IEC 60332-1 |
| Insulation resistance | 100 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # x mm² | mm | kg/km | # x mm² | mm | kg/km |
| 2x1.5 | 9.0 | 110 | 3x1.5 | 9.5 | 125 |
| 2x2.5 | 10.0 | 145 | 3x2.5 | 10.5 | 175 |
| 2x4 | 11.0 | 190 | 3x4 | 11.5 | 24 |
| 4x1.5 | 10.0 | 155 | 5x1.5 | 11.0 | 185 |
| 4x2.5 | 11.5 | 215 | 5x2.5 | 13.0 | 260 |
| 4x4 | 13.0 | 300 | 5x4 | 14.5 | 380 |
| 4x6 | 14.5 | 410 | 5x6 | 16.0 | 490 |
