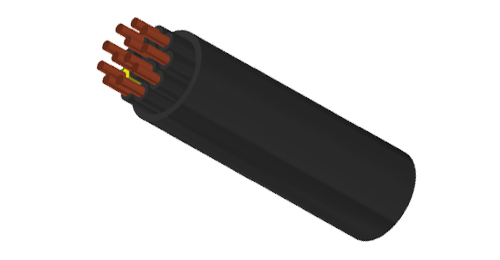

H1VV-U cable is a commonly used low-voltage power cable, widely applied in various power installation systems. This cable is particularly suitable for the following application scenarios: indoor and outdoor installation, cable trays and conduits, direct burial underground, power plants and substations, local energy distribution, and industrial plants.
IEC 60502-1

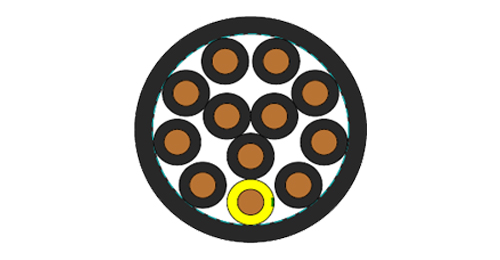

Solid copper conductor, class 1 to NP 2363
PVC insulation
Color coded to HD 308
Flexible PVC outer jacket
| Working voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Flexing bending radius | 15 x Ø |
| Static bending radius | 12 x Ø |
| Flexing Temperature | -5ºC to +50ºC |
| Fixed installation temperature | - 40ºC to +70ºC |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Insulation resistance | 100 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # x mm² | mm | kg/km | # x mm² | mm | kg/km |
| 1x1.5 | 6.4 | 58 | 30x1.5 | 26 | 1020 |
| 1x2.5 | 6.8 | 71 | 40x1.5 | 29 | 1290 |
| 2x1.5 | 12 | 205 | 48x1.5 | 32 | 1520 |
| 2x2.5 | 13 | 250 | 61x1.5 | 35 | 1900 |
| 3x1.5 | 13 | 230 | 5x2.5 | 16 | 375 |
| 3x2.5 | 13.5 | 280 | 7x2.5 | 17 | 460 |
| 4x1.5 | 13.5 | 265 | 10x2.5 | 20 | 590 |
| 4x2.5 | 14.5 | 325 | 12x2.5 | 21 | 660 |
| 5x1.5 | 14.5 | 300 | 14x2.5 | 22 | 740 |
| 7x1.5 | 15.5 | 360 | 19x2.5 | 24 | 940 |
| 10x1.5 | 19 | 460 | 21x2.5 | 25 | 1030 |
| 12x1.5 | 19.5 | 510 | 24x2.5 | 27 | 1150 |
| 14x1.5 | 20 | 570 | 30x2.5 | 29 | 1370 |
| 19x1.5 | 22 | 710 | 40x2.5 | 32 | 1810 |
| 21x1.5 | 23 | 770 | 48x2.5 | 36 | 2130 |
| 24x1.5 | 25 | 870 | 61x2.5 | 39 | 2630 |
