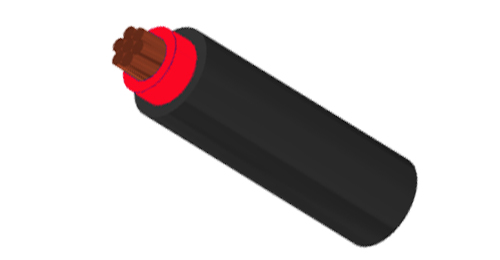

H1VV-R cable is a high-quality cable widely used in low-voltage power systems, complying with the Portuguese Standard (Norma Portuguesa). This cable is suitable for various installation environments, including: indoor locations, outdoor locations, cable trays/cable trenches, direct burial underground, substations/distribution stations, local energy distribution, and industrial plants.
Important Note: When installing and using H1VV-R cable, it is essential to avoid mechanical damage to ensure proper operation and service life of the cable.
IEC 60502-1

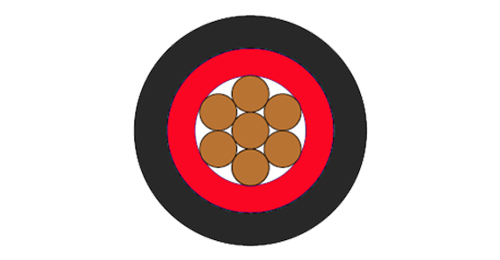

Stranded copper conductor, class 2 to NP 2363
PVC insulation
Color coded to HD 308
Flexible PVC outer jacket
| Working voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Flexing bending radius | 15 x Ø |
| Static bending radius | 12 x Ø |
| Flexing Temperature | -5ºC to +50ºC |
| Fixed installation temperature | - 40ºC to +70ºC |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Insulation resistance | 100 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # x mm² | mm | kg/km | # x mm² | mm | kg/km |
| 1x4 | 7.5 | 95 | 3x4 | 15.5 | 380 |
| 1x6 | 8 | 120 | 3x6 | 17 | 470 |
| 1x10 | 9 | 165 | 3x10 | 18.5 | 630 |
| 1x16 | 10 | 230 | 3x16 | 21 | 880 |
| 1x25 | 12 | 340 | 3x25 | 24.5 | 1280 |
| 1x35 | 13 | 450 | 3x35 | 27 | 1660 |
| 1x50 | 14.5 | 570 | 3x50 | 30 | 2110 |
| 1x70 | 16 | 800 | 3x70 | 35 | 2980 |
| 1x95 | 18.5 | 1070 | 3x95 | 40 | 3930 |
| 1x120 | 20 | 1300 | 3x120 | 43 | 4780 |
| 1x150 | 22 | 1600 | 3x150 | 48 | 5880 |
| 1x185 | 24 | 1980 | 3x185 | 52 | 7230 |
| 1x240 | 27 | 2560 | 3x240 | 59 | 9390 |
| 1x300 | 30 | 3180 | 3x300 | 65 | 11620 |
| 1x400 | 33 | 4060 | 3x400 | 72 | 14730 |
| 1x500 | 37 | 5140 | 4x4 | 16.5 | 450 |
| 1x630 | 42 | 6600 | 4x6 | 18 | 560 |
| 2x4 | 15 | 330 | 4x10 | 20 | 770 |
| 2x6 | 16 | 400 | 4x16 | 23 | 1080 |
| 2x10 | 17.5 | 525 | 4x25 | 26.5 | 1580 |
| 2x16 | 20 | 720 | 4x35 | 29.5 | 2070 |
| 2x25 | 23.5 | 1030 | 4x50 | 34 | 2680 |
| 2x35 | 25.5 | 1320 | 4x70 | 38 | 3760 |
| 2x50 | 28.5 | 1670 | 4x95 | 44 | 4960 |
| 2x70 | 32 | 2290 | 4x120 | 48 | 6110 |
| 2x95 | 37 | 3060 | 4x150 | 53 | 7450 |
| 2x120 | 40 | 3700 | 4x185 | 58 | 9220 |
| 2x150 | 44 | 4500 | 4x240 | 65 | 11900 |
| 2x185 | 48 | 5570 | 4x300 | 72 | 14730 |
| 2x240 | 55 | 7180 | 4x400 | 81 | 18830 |
