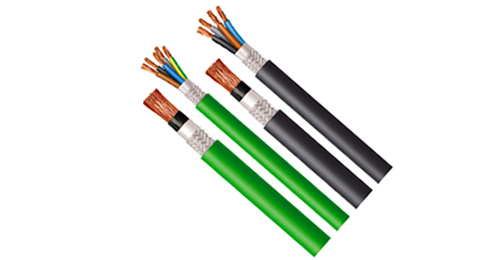

RC4Z1-K (AS) Shielded Halogen-Free Cable: A Safe and Reliable Power Transmission Solution
This high-performance, halogen-free, shielded cable RC4Z1-K (AS) is the ideal choice for applications demanding the highest levels of safety and reliability. It provides excellent shielding performance in power transmission, effectively suppressing electromagnetic interference and ensuring the stable operation of power systems.
UNE 21123-4
IEC 60502
EN 60332-1
EN 50266
EN 50267-1
EN 50267-2
EN 61034
IEC 60332-1
IEC 60332-3
IEC 60754-1
IEC 60754-2
IEC 61034

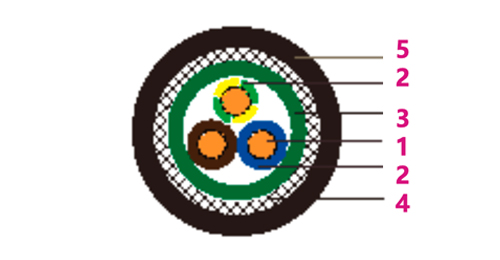

Rigid electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228.
XLPE insulation, low smoke and halogen free, type DIX 3 according to HD 603
Color coded to HD 308
Polyester tape separator
High coverage tinned copper braided screen
Polyolefin outer sheath according to UNE 21123
| Working voltage | 600/1000 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 10 x Ø |
| Working temperature | -15°C to +90°C |
| Short circuit temperature | +250°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| Halogen free | IEC 60754-1, EN 50267-2-1 |
| No corrosive gases | IEC 60754-2, EN 50267-2-2 |
| No toxic gases | NES 02-713, NF X 70-100 |
| Low smoke density | IEC 61034, EN 50268-2 |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Non-flame propagating | IEC 60332-3, EN 50266-2 |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 8(80/26) | 1×10 | 11.9 | 231 |
| 6(128/26) | 1×16 | 13.1 | 300 |
| 4(200/26) | 1×25 | 14.2 | 389 |
| 2(280/26) | 1×35 | 15.3 | 489 |
| 1(400/26) | 1×50 | 16.8 | 637 |
| 2/0(356/24) | 1×70 | 18.7 | 835 |
| 3/0(485/24) | 1×95 | 21.1 | 1098 |
| 4/0(614/24) | 1×120 | 22.6 | 1331 |
| 300 MCM (765/24) | 1×150 | 24.7 | 1628 |
| 350 MCM (944/24) | 1×185 | 26.9 | 1975 |
| 500MCM (1225/24) | 1×240 | 30.0 | 2514 |
| - | 1×300 | 33.2 | 3114 |
| 16(30/30) | 2×1.5 | 9.0 | 96 |
| 14(50/30) | 2×2.5 | 9.9 | 122 |
| 12(56/28) | 2×4 | 10.7 | 156 |
| 10(84/28) | 2×6 | 11.8 | 202 |
| 8(80/26) | 2×10 | 13.8 | 296 |
| 6(128/26) | 2×16 | 16.3 | 436 |
| 4(200/26) | 2×25 | 19.5 | 646 |
| 2 (280/26) | 2×35 | 22.5 | 880 |
| 16(30/30) | 3G1.5 | 9.6 | 117 |
| 14(50/30) | 3G2.5 | 11.2 | 172 |
| 12(56/28) | 3G4 | 12.0 | 216 |
| 10(84/28) | 3G6 | 13.4 | 286 |
| 8(80/26) | 3G10 | 15.7 | 422 |
| 6(128/26) | 3×16 | 17.6 | 594 |
| 4(200/26) | 3×25 | 21.2 | 872 |
| 2(280/26) | 3×35 | 24.4 | 1195 |
| 1(400/26) | 3×50 | 28.6 | 1669 |
| 2/0(356/24) | 3×70 | 33.3 | 2301 |
| 16(30/30) | 4G1.5 | 10.3 | 141 |
| 14(50/30) | 4G2.5 | 11.2 | 183 |
| 12(56/28) | 4G4 | 13.1 | 275 |
| 10(84/28) | 4G6 | 14.8 | 355 |
| 8(80/26) | 4G10 | 17.1 | 529 |
| 6(128/26) | 4×16 | 19.5 | 755 |
| 4(200/26) | 4×25 | 22.5 | 1079 |
| 2 (280/26) | 4×35 | 25.7 | 1506 |
| 1(400/26) | 4×50 | 30.1 | 2037 |
| 2/0(356/24) | 4×70 | 35.0 | 2804 |
| 3/0(485/24) | 4×95 | 40.2 | 3741 |
| 16(30/30) | 5G1.5 | 11.2 | 167 |
| 14(50/30) | 5G2.5 | 12.7 | 233 |
| 12(56/28) | 5G4 | 14.0 | 310 |
| 10(84/28) | 5G6 | 16.0 | 431 |
| 8(80/26) | 5G10 | 18.1 | 619 |
| 6(128/26) | 5G16 | 21.5 | 928 |
| 4(200/26) | 5G25 | 25.7 | 1387 |
| 2 (280/26) | 5G35 | 29.8 | 1905 |
