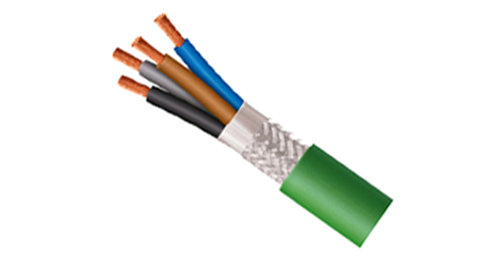

Z1C4Z1-K(AS) 0.6/1kV Shielded Zero Halogen Low Smoke Industrial Cable is a high-performance, high-safety specialty cable that complies with Spanish standards. This cable utilizes halogen-free materials, which do not release toxic or corrosive gases during combustion, effectively safeguarding personnel health and electronic equipment safety while reducing secondary hazards caused by fires. Additionally, its excellent shielding performance effectively prevents electromagnetic interference, ensuring stable and reliable signal transmission.
UNE 21123-4
IEC 60502
EN 60332-1
EN 50266
EN 50267-1
EN 50267-2
EN 61034
IEC 60332-1
IEC 60332-3
IEC 60754-1
IEC 60754-2
IEC 61034

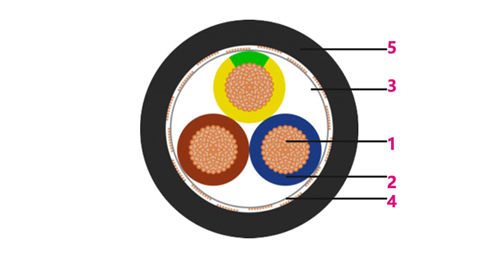

Flexible electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228.
Halogen free polyolefin insulation
Color coded to HD 308, 6 or more conductors : black numbered + green/yellow
Polyester tape separator
High coverage tinned copper braided screen
Polyolefin outer sheath according to UNE 21123
| Working voltage | 600/1000 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 5 x Ø |
| Working temperature | -15°C to +70°C |
| Short circuit temperature | +160°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| Halogen free | IEC 60754-1, EN 50267-2-1 |
| No corrosive gases | IEC 60754-2, EN 50267-2-2 |
| No toxic gases | NES 02-713, NF X 70-100 |
| Low smoke density | IEC 61034, EN 50268-2 |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Non-flame propagating | IEC 60332-3, EN 50266-2 |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 16(30/30) | 7G1.5 | 12.0 | 205 |
| 16(30/30) | 12G1.5 | 15.4 | 316 |
| 16(30/30) | 14G1.5 | 16.3 | 358 |
| 16(30/30) | 16G1.5 | 17.2 | 402 |
| 16(30/30) | 19G1.5 | 18.1 | 462 |
| 16(30/30) | 24G1.5 | 21.1 | 578 |
| 16(30/30) | 27G1.5 | 21.6 | 647 |
| 14(50/30) | 7G2.5 | 14.0 | 295 |
| 14(50/30) | 12G2.5 | 18.4 | 463 |
| 14(50/30) | 14G2.5 | 19.3 | 531 |
| 14(50/30) | 16G2.5 | 20.4 | 595 |
| 14(50/30) | 19G2.5 | 21.6 | 702 |
| 14(50/30) | 24G2.5 | 25.4 | 873 |
| 14(50/30) | 27G2.5 | 26.0 | 977 |
