RG11 armoured coaxial cable provides a 75 ohm signal path for indoor marine distribution systems where cable attenuation and route space both influence selection. Its 14 AWG solid bare copper conductor is surrounded by foam PE, foil and tinned copper braid screening. LSZH bedding separates the screened core from the tinned copper braid armour, and an LSZH polyolefin sheath encloses the assembly. The nominal overall diameter is 15.0 mm.
IEC 60092-350
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016

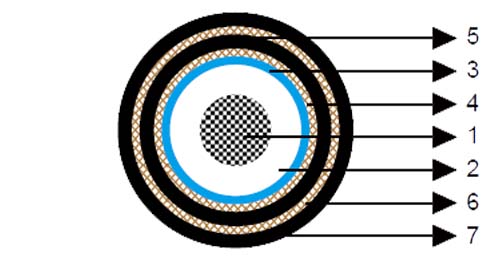

Conductors : 14AWG solid bare copper.
Insulation : Foam PE.
Shielding1 : Al/Polyester/Al tape.
Shielding2 : Tinned copper braid.
Bedding : Low smoke and halogen-free polyolefin, coloured black.
Armour : Tinned copper wire braid.
Outer Sheath : Low smoke and halogen-free polyolefin.
| AWG | 14 | |
|---|---|---|
| Nominal Conductor Diameter | mm | 1.6 |
| Impedance | Ω | 75+/-5 |
| Nominal Attenuation@100MHz | dB/100m | 4.5 |
| Nominal Attenuation@270MHz | dB/100m | 7.6 |
| Nominal Attenuation@540MHz | dB/100m | 10.8 |
| Nominal Attenuation@750MHz | dB/100m | 12.8 |
| Nominal Attenuation@1000MHz | dB/100m | 14.8 |
| Capacitance | pF/m | 53.5 |
| Velocity of Propagation | % | 83 |
| Conductor DCR | Ω/km | 8.5 |
| Shield DCR | Ω/km | 12.1 |
| Inductance | μH/m | 0.32 |
| Time Delay | ns/m | 4 |
Bending Radius : 15×OD
Temperature Range : -30℃ ~ +75℃
| Nominal Inner Conductor Diameter | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| mm | mm | mm | mm | kg/km |
| 1.6 | 2.7 | 1.7 | 15.0 | 353 |
1.6 mm nominal solid copper centre conductor.
75±5 ohm impedance, with attenuation values listed from 100 to 1000 MHz.
Separate screening and armour layers for coordinated connector and cable-entry design.
Compare the loss at the required frequency with the total route budget, including splitters and connections. Plan sufficient support and bend space for the 15.0 mm cable diameter and the listed 15 times overall-diameter minimum radius. Select connectors specifically compatible with the centre conductor, dielectric and armoured jacket construction.
