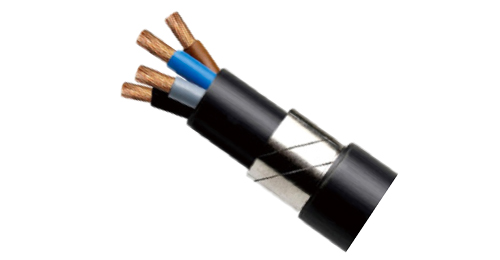

RVFV & VVFV Cables: The High-Strength Safety Choice, Widely Used in Demanding Environments
The RVFV and VVFV cable series are high-performance industrial cables designed for fixed installation environments, particularly suitable for applications requiring high mechanical strength and rodent resistance. Our RVFV and VVFV cables excel in settings such as warehouses, production workshops, and agricultural facilities, effectively safeguarding against potential rodent threats to ensure reliable and long-lasting power transmission. Additionally, they are highly recommended for street lighting systems with stringent safety requirements.
What’s more, RVFV and VVFV cables are equally capable in areas with potential explosion risks, such as gas stations or flammable material storage facilities, providing an extra layer of safety protection. Compliant with rigorous industry standards, they guarantee safe and stable operation in a variety of complex and hazardous environments.
UNE 21123-2
IEC 60502
EN 60332-1
IEC 60332-1

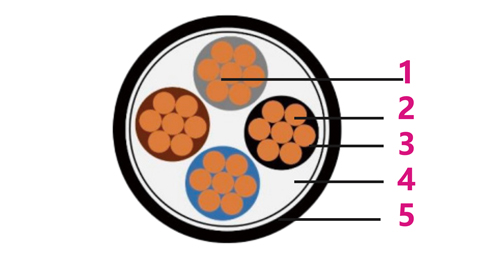

Rigid electrolytic annealed copper conductor
Class 1 (up to 4mm² ) or 2 (from 6mm² upwards) in accordance with IEC 60228
Class 5 for (RVFV-K/VVFV-K) in accordance with IEC 60228
XLPE insulation (RVFV/RVFV-K) or PVC insulation (VVFV/ VVFV-K) according to IEC 60502
up to 5 conductors: by colors (RVFV/RVFV-K)
6 or more conductors : black numbered + green/yellow. (VVFV/VVFV-K)
Extruded continuous PVC bedding type ST1/ST2 of standard IEC 60502.
Double steel or aluminum tape armour
Flexible PVC compound outer sheath type ST1/ST2 of standard IEC 60502
| Working voltage | 600/1000 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 10 x Ø |
| Working temperature | -15°C to +90°C |
| Short circuit temperature | +250°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 6 | 1×16 | 14.4 | 345 |
| 4 | 1×25 | 16 | 477 |
| 2 | 1×35 | 17.3 | 582 |
| 1 | 1×50 | 18.5 | 722 |
| 2/0 | 1×70 | 20.7 | 962 |
| 3/0 | 1×95 | 22.1 | 1173 |
| 4/0 | 1×120 | 24.6 | 1522 |
| 300MCM | 1×150 | 26.5 | 1821 |
| 350MCM | 1×185 | 28.5 | 2230 |
| 500MCM | 1×240 | 31.7 | 2,35 |
| 16 | 2×1.5 | 12.3 | 227 |
| 14 | 2×2.5 | 12.8 | 259 |
| 12 | 2×4 | 13.6 | 311 |
| 10 | 2×6 | 15.8 | 411 |
| 8 | 2×10 | 17.8 | 552 |
| 6 | 2×16 | 19.6 | 726 |
| 16 | 3×1.5 | 12.8 | 252 |
| 14 | 3×2.5 | 13.3 | 293 |
| 12 | 3×4 | 14.5 | 367 |
| 10 | 3×6 | 16.3 | 468 |
| 8 | 3×10 | 18.3 | 641 |
| 6 | 3×16 | 20.4 | 870 |
| 6 | 3×16/10 | 21.5 | 996 |
| 4 | 3×25/16 | 25.1 | 1468 |
| 2 | 3×35/16 | 27.9 | 1854 |
| 1 | 3×50/25 | 29.6 | 2101 |
| 2/0 | 3×70/35 | 37.8 | 3683 |
| 3/0 | 3×95/50 | 41.3 | 4613 |
| 4/0 | 3×120/70 | 46.9 | 6,023 |
| 300MCM | 3×150/70 | 54.7 | 7455 |
| 350MCM | 3×185/95 | 55.1 | 8890 |
| 500MCM | 3×240/120 | 62.5 | 11055 |
| 16 | 4×1.5 | 13.2 | 275 |
| 14 | 4×2.5 | 14.4 | 339 |
| 12 | 4×4 | 15.1 | 419 |
| 10 | 4×6 | 17.3 | 545 |
| 8 | 4×10 | 19.8 | 770 |
| 6 | 4×16 | 22.3 | 1062 |
| 4 | 4×25 | 26.5 | 1602 |
| 16 | 5×1.5 | 14.4 | 320 |
| 14 | 5×2.5 | 15.3 | 390 |
| 12 | 5×4 | 17.2 | 509 |
| 10 | 5×6 | 18.8 | 640 |
| 8 | 5×10 | 21.3 | 909 |
| 6 | 5×16 | 25.2 | 1304 |
| 16 | 6×1.5 | 15.8 | 394 |
| 16 | 7×1.5 | 15.8 | 412 |
| 16 | 10×1.5 | 17.8 | 521 |
| 16 | 12×1.5 | 19.2 | 603 |
| 16 | 16×1.5 | 20.8 | 714 |
| 16 | 19×1.5 | 21.8 | 792 |
| 16 | 24×1.5 | 23.3 | 914 |
| 16 | 27×1.5 | 25.4 | 1015 |
