The cables are designed for connection between traffic control centers and equipment shelters along the trackside. The cables are specially designed to give good induction protection (R.F=0.21 at inductive voltage 100V/km) and are suitable for installation in high speed railway lines electrifi ed at 25KV ac.
SNCF CT 445
NF F 55-698

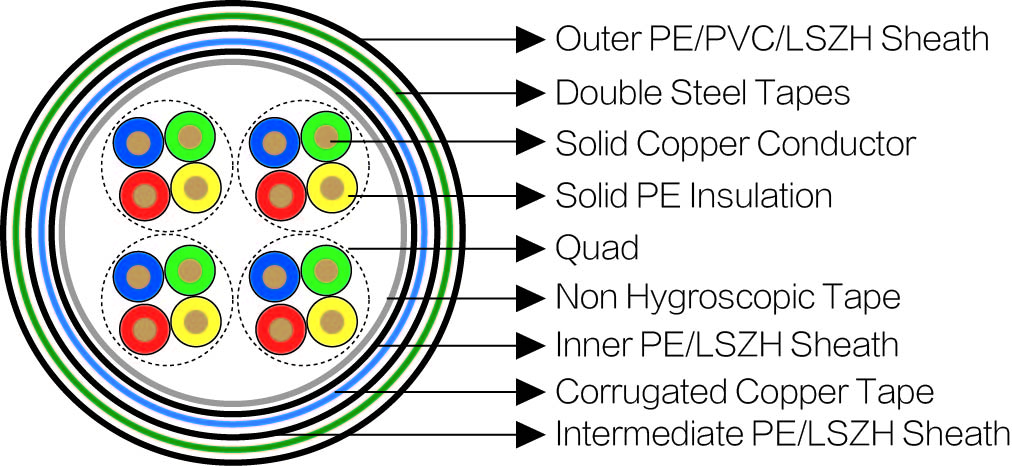

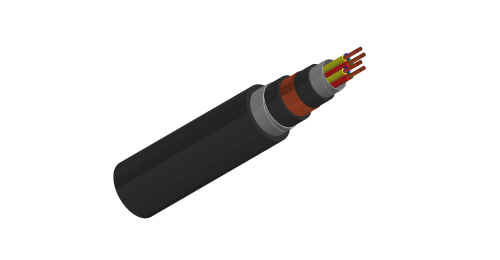

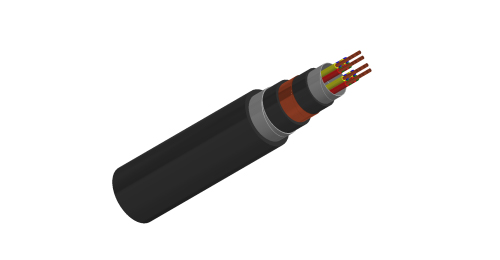

Conductors : Solid annealed copper, 1.0 mm² nominal cross section area.
Insulation : Solid polyethylene.
Cabling Element : Four conductors are twisted to form a quad.
Stranding : Quads are helically stranded to get the cable core.
Core Wrapping : Plastic tape(s) with overlapping.
Inner Sheath : Low density polyethylene. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
Electrostatic Shield : Corrugated copper tape.
Intermediate Sheath : Low density polyethylene. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
Electromagnetic Shield : Two helically applied steel tapes (0.5mm).
Outer Sheath : PE/PVC compound. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
Remarks : ZCO3 : PE/PVC Sheath ; ZCO3-SH : LSZH Sheath.
| Nominal Conductor Diameter | mm | 1.13 |
| Nominal Cross Section Area | mm² | 1.0 |
| Maximum Conductor Resistance (DC) | Ω/km | 18.1 |
| Minimum Insulation Resistance @500 V DC (3mins) | MΩ.km | 5000 |
| Maximum Mutual Capacitance @1000Hz (AC) | nF/km | 40 |
| Maximum Capacitance Unbalance @800Hz | pF/500m | 400 |
| Dielectric Strength, conductor to conductor (DC voltage 3mins) | V | 4500 |
| Operating Voltage AC/DC | V | 450/750 |
| Inductive voltage(V/km) | 50 | 70 | 100 | 370 | 400 | 470 |
| Reduction factor @50Hz | 0.42 | 0.30 | 0.20 | 0.16 | 0.18 | 0.31 |
Minimum Bending Radius : 8×OD (static) ; 16×OD (dynamic)
Temperature Range : -40℃ to +70℃ (during operation) ; -20℃ to +50℃ (during installation)
| Cable Code | No. of Quads | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|---|
| Inner | Interm. | Outer | ||||
| mm | mm | mm | mm | kg/km | ||
| 1.13mm Conductor, 2.33 Insulated Wire | ||||||
| BRAIL ZCO3-2Y2Y(K)2YB2Y-2Q1S | 2 | 0.8 | 1.0 | 1.6 | 27.0 | 1295 |
| BRAIL ZCO3-2Y2Y(K)2YB2Y-4Q1S | 4 | 0.8 | 1.0 | 1.6 | 29.5 | 1490 |
