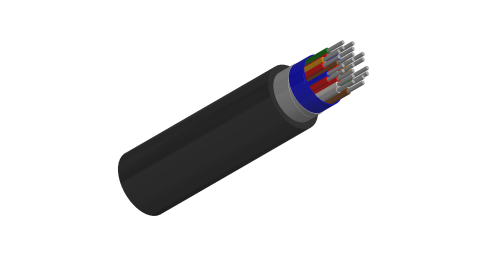

RT/F3 D & S & B type Axle Counter Cable
APPLICATIONThe cables are designed for transmission of signals up to 90 kHz in axle counter train detection systems.STANDARDRT/E/PS/00031CABLE CONSTRUCTIONType CodesConductors: Tinned copper, 0.9/1.4 mm nominal diameter.Insulation: Solid polyethylene.…
RT_F3 D & S & B type Axle Counter Cable.pdf Contact us

APPLICATION

The cables are designed for transmission of signals up to 90 kHz in axle counter train detection systems.

STANDARD

  • RT/E/PS/00031

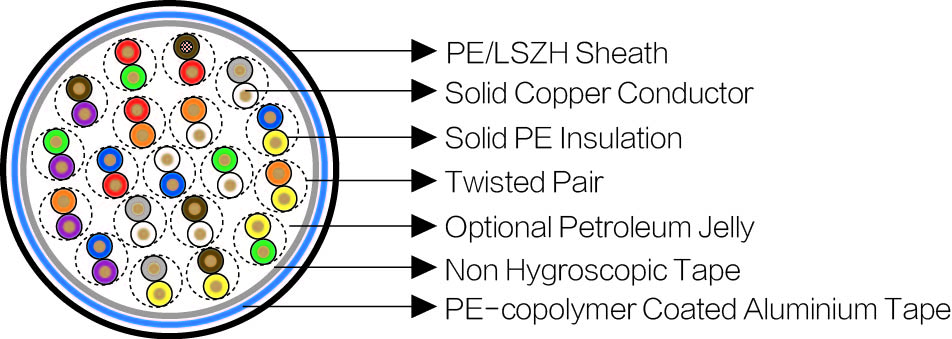

CABLE CONSTRUCTION

  • Type CodesConductors: Tinned copper, 0.9/1.4 mm nominal diameter.

  • Insulation: Solid polyethylene.

  • Cabling Element: Two insulated conductors are twisted together to form a pair.

  • Stranding: Pairs are helically stranded in concentric layers.

  • Filling: Cable core interstices are filled with a low-permitivity compound. Unfi lled cables option can be offered upon request.

  • Core Wrapping: Plastic tape(s) with overlapping.

  • Moisture Barrier: One laminated sheath made of aluminium tape coated with PE Copolymer on at least one side is applied with longitudinally overlap.

  • Inner Sheath (for S/B type): Polyethylene or LSZH fi re retardant compound.

  • Mechanical Protection (for S/B type): One corrugated steel tape or brass tape is longitudinally applied with overlap. Unarmoured cables option can be offered upon request.

  • Outer Sheath: Polyethylene or LSZH fi re retardant compound. Ruggedised PE sheath compound can be offered upon request.

  • F1 class: Non LSZH cables.

  • F5 class: Unfi lled cables

  • D type: Unarmoured types

  • R type: Ruggedised PE sheath

  • S type: Steel tape armoured types

  • B type: Brass tape armoured types

  • E1, E2 & E3 types: 3 different induction protection levels available.

ELECTRICAL CHARACTERISTICS AT 20℃

Nominal Conductor Diametermm0.91.4
Nominal Conductor Cross Sectionmm0.631.5
Maximum Conductor ResistanceΩ/km30.012.5
Minimum Insulation Resistance @500 V DC (1min)MΩ.km50005000
Nominal Conductor Capacitance @800Hz/1000Hz (AC)nF/km42+347+3
Dielectric Strength, conductor to screen (DC voltage 2mins)V30003000
Maximum Average Attenuation


@1.0KHzdB/km0.730.45
@2.4KHzdB/km1.100.62
@40KHzdB/km2.881.77
@90KHzdB/km3.702.41
@1.024MHzdB/km11.27.45
Minimum Average Near-end Crosstalk


@1.0KHzdB/km6060
@2.4KHzdB/km6060
@40KHzdB/km5050
@90KHzdB/km5050
@1.024MHzdB/km3535

MECHANICAL AND THERMAL PROPERTIES

  • Minimum Bending Radius: 7.5×OD (unarmoured); 10×OD (armoured)

  • Temperature Range: -30℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

CORE IDENTIFICATION

DIMENSIONS AND WEIGHT

A-2Y(F)(L)2Y n×2×0.9/1.4 Cables

Cable CodeNumber of Pairs
(n)
Nominal Sheath Thickness
mm
Maximum Overall
Diameter
mm
Nominal Weight
kg/km
0.9mm Conductor, 1.55mm Insulated Wire
BRAIL RT/F3-D-2Y(F)(L)2Y-2P0.922.413.2210
BRAIL RT/F3-D-2Y(F)(L)2Y-10P0.9102.421.6530
BRAIL RT/F3-D-2Y(F)(L)2Y-12P0.9122.424.8580
BRAIL RT/F3-D-2Y(F)(L)2Y-19P0.9192.431.2800
BRAIL RT/F3-D-2Y(F)(L)2Y-24P0.9242.433.8980
1.4mm Conductor, 2.2mm Insulated Wire
BRAIL RT/F3-D-2Y(F)(L)2Y-2P1.422.423.4320
BRAIL RT/F3-D-2Y(F)(L)2Y-10P1.4102.430.0910
BRAIL RT/F3-D-2Y(F)(L)2Y-12P1.4122.432.01101
BRAIL RT/F3-D-2Y(F)(L)2Y-19P1.4192.437.31450
BRAIL RT/F3-D-2Y(F)(L)2Y-24P1.4242.442.31780

A-2Y(L)2YB2Y n×2×0.9/1.4 Cables

Cable CodeNumber of
Pairs
(n)
Nominal Sheath Thickness
mm
Maximum Overall
Diameter
mm
Nominal Weight
kg/km

0.9mm Conductor, 1.8mm Insulated Wire
BRAIL RT/F3-S-2Y(L)2YB2Y-2P0.922.22.422.0399
BRAIL RT/F3-S-2Y(L)2YB2Y-10P0.9102.22.430.4880
BRAIL RT/F3-S-2Y(L)2YB2Y-12P0.9122.22.433.6963
BRAIL RT/F3-S-2Y(L)2YB2Y-19P0.9192.22.440.01312
BRAIL RT/F3-S-2Y(L)2YB2Y-24P0.9242.22.442.61626
1.4mm Conductor , 2.7mm Insulated Wire
BRAIL RT/F3-S-2Y(L)2YB2Y-2P1.422.22.432.2608
BRAIL RT/F3-S-2Y(L)2YB2Y-10P1.4102.22.438.81510
BRAIL RT/F3-S-2Y(L)2YB2Y-12P1.4122.22.440.81827
BRAIL RT/F3-S-2Y(L)2YB2Y-19P1.4192.22.446.12380
BRAIL RT/F3-S-2Y(L)2YB2Y-24P1.4242.22.451.12954
