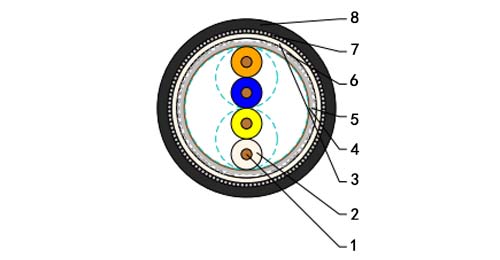

This range covers two distinct Profinet Type A constructions. The radiation-area version combines cross-linked XLPE insulation, a cross-linked TPR inner jacket and a PUR outer sheath. The outdoor version uses PE insulation, a PVC inner jacket, steel armour and a black PE outer sheath. Each construction has its own dimensions and installation limits.
| Type/Area of Application | Ray loaded areas | Fixed Installation, Outdoor |
| Cable Construction | 2x2x0.64 mm | 2x2x0.64 mm |
| Inner Conductor Diameter | Copper, bare (AWG 22/1) | Copper, bare (AWG 22/1) |
| Conductor Insulation | XLPE ray cross-linking | PE |
| Conductor Colors | white, yellow, blue, orange | white, yellow, blue, orange |
| Stranding Element | Star quad | Star quad |
| Wrapping | Polyester foil over stranded bundle | Polyester foil over stranded bundle |
| Shielding | Polyester foil, aluminum-lined | Polyester foil, aluminum-lined |
| Total Shielding | Cu braid, tinned | Cu braid, tinned |
| Armoring | - | Steel Rib |
| Inner Jacket Material | TPR cross-linking | PVC |
| Outer Jacket Material | PUR | PE |
| Outer Diameter | 6.5 mm ± 0.2 mm | 9.3 mm ± 0.5 mm |
| Outer Jacket Color | Green | Black |
| Characteristic Impedance@1-100 MHz | 100 Ω ± 15 Ω | |
| Conductor Resistance | 62.0 Ohm/km max. | |
| Insulation Resistance | 0.50 GOhm x km min. | |
| Mutual Capacitance | 50.0 nF/km nom. | |
| Working Voltage | 300V | |
| Test Voltage | 1.5 KV | |
| 10 MHz | 5.2 dB/100m | |
| Attenuation | 16 MHz | 6.9 dB/100m |
| 62.5 MHz | 16.0 dB/100m | |
| 100 MHz | 19.5 dB/100m | |
| Weight | approximately 63.0 kg/km | approximately 124.0 kg/km |
| Min. Bending Radius (Laying) | 46.0 mm | 93.0 mm |
| Operating Temp. Range, min. | -40 °C | -40 °C |
| Operating Temp.Range, max. | +80 °C | +70 °C |
Solid AWG 22/1 bare copper cores arranged as a star quad.
Aluminium-lined foil and tinned copper braid screens on both versions.
Separate 6.5 mm PUR and 9.3 mm armoured PE constructions.
Specify the construction by its complete layer arrangement. For radiation-area projects, include radiation type, dose and exposure conditions in the technical enquiry so the material specification can be agreed. For outdoor routes, account for the armoured cable diameter and the listed 93 mm laying radius.
Profinet Type A Cable, 100 Ohm, Solid Copper, PVC or PUR Sheath
Profinet Type B Cable, Flexible Data and Data-Plus-Power Versions
Profinet Type B+C Cable, Mobile and Drag Chain, PVC or PUR Sheath
Is the radiation-area version also the armoured version?
They are separate constructions. Steel armour is listed for the outdoor PE-sheathed version.
What materials are used in the radiation-area construction?
Cross-linked XLPE insulation, a cross-linked TPR inner jacket and a PUR outer sheath, with foil and braid screening.
What is the diameter of the outdoor version?
The armoured outdoor cable has an overall diameter of 9.3 ± 0.5 mm.
How do the laying bend limits compare?
The radiation-area construction specifies 46 mm; the outdoor armoured construction specifies 93 mm.
What temperature limits are listed?
Both start at −40°C. The radiation-area construction extends to +80°C and the outdoor armoured construction to +70°C.
