Profinet Type B cable is intended for industrial Ethernet routes that need flexibility. This range includes a data-only cable and a hybrid construction combining data cores with four power conductors. Stranded tinned copper data conductors, foil and copper braid screening, and PVC or FRNC sheath options allow the assembly to be matched to the equipment connection.
| Type/Area of Application | Flex Use | Mobile Use |

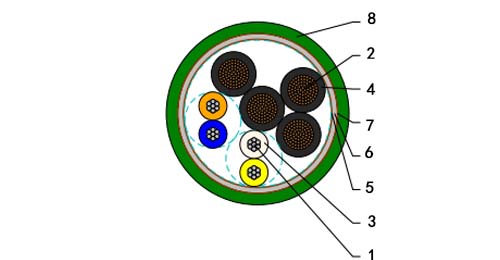

| Cable Construction | 2x2x0.64 mm (stranded) | 2x2x0.64 mm (stranded) + 4x1.5mm² |
| Inner Conductor Diameter 1 | Copper, tinned (AWG 22/7) | Copper, tinned (AWG 22/7) |
| Inner Conductor Diameter 2 | / | Copper, bare (AWG 16/84) |
| Conductor Insulation 1 | Foam-Skin-PE or PE or PP | Foam-Skin-PE or PE or PP |
| Conductor Insulation 2 | / | Foam-Skin-PE or PE or PP |
| Conductor Colors 1 | white, yellow, blue, orange | white, yellow, blue, orange |
| Conductor Colors 2 | / | Black |
| Stranding Element | Double Conductor | Double Conductor |
| Wrapping | Polyester foil over stranded bundle | Polyester foil over stranded bundle |
| Total Shielding | copper braid and plastic-laminated aluminium foil | copper braid and plastic-laminated aluminium foil |
| Outer Jacket Material | PVC or FRNC | PVC or FRNC |
| Outer Diameter | 6.5 mm ± 0.2 mm | 10.3 mm ± 0.3 mm |
| Outer Jacket Color | Green | Green |
| Characteristic Impedance@1-100 MHz | 100 Ω ± 15 Ω | |
| Conductor Resistance | 60.0 Ohm/km max. | |
| Insulation Resistance | 0.50 GOhm x km min. | |
| Mutual Capacitance | 52.0 nF/km nom. | |
| Working Voltage | 300V | |
| Test Voltage | 1.5 KV | |
| Attenuation | 10 MHz | 6.3 dB/100m |
| 16 MHz | 8.0 dB/100m | |
| 62.5 MHz | 16.5 dB/100m | |
| 100 MHz | 21.3 dB/100m | |
| Weight | approximately 153.0 kg/km |
| Min. Bending Radius for Laying | 10 x OD mm |
| Operating Temperature Range, min. | -40 °C |
| Operating Temperature Range, max. | +70 °C |
Stranded AWG 22/7 tinned copper data conductors.
Separate data-only and data-plus-power constructions.
Green PVC or FRNC outer sheath; 100 ± 15 ohms impedance at 1–100 MHz.
State whether the connection requires data only or a combined data and power cable. The nominal diameters are 6.5 mm and 10.3 mm respectively, so connector sealing and strain relief must match the selected construction. Define the movement duty with the installation; dedicated drag-chain options appear in the related B+C range.
Profinet Type A Cable, 100 Ohm, Solid Copper, PVC or PUR Sheath
Profinet Type B+C Cable, Mobile and Drag Chain, PVC or PUR Sheath
What are the two constructions on this page?
A data-only cable for flexible use and a hybrid version that adds four power conductors to the data assembly.
Are the data conductors tinned?
Yes. Both versions use stranded tinned copper data conductors designated AWG 22/7.
Which sheath materials are listed?
PVC or FRNC, with green as the outer sheath colour.
How much larger is the hybrid cable?
The data-only cable is 6.5 ± 0.2 mm in diameter; the hybrid cable is 10.3 ± 0.3 mm.
What laying bend radius is listed?
The technical data specifies 10 times the overall cable diameter.
