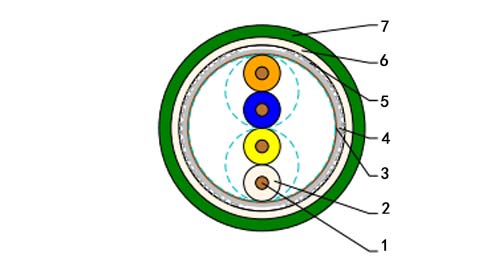

For Profinet connections on moving equipment, this range separates the mobile-use construction from the drag-chain construction. Both use stranded tinned copper cores with PE insulation in a star-quad assembly. The mobile version has PVC inner and outer jackets; the drag-chain version has an FRNC inner jacket and a PUR outer sheath.
| Type/Area of Application | Mobile Use | Drag Chain Applications |
| Cable Construction | 2x2x0.64 mm (stranded) | 2x2x0.64 mm (stranded) |
| Inner Conductor Diamete | Copper, tinned (AWG 22/7) | Copper, tinned (AWG 22/7) |
| Conductor Insulation | PE | PE |
| Conductor Colors | white, yellow, blue, orange | white, yellow, blue, orange |
| Stranding Element | Star quad | Star quad |
| Wrapping | Polyester foil over stranded bundle | Polyester foil over stranded bundle |
| Shielding | Polyester foil, aluminum-lined | Polyester foil, aluminum-lined |
| Total Shielding | Cu braid, tinned | Cu braid, tinned |
| Inner Jacket Material | PVC | FRNC |
| Outer Jacket Material | PVC | PUR |
| Outer Diameter | 6.5 mm ± 0.2 mm | 6.5 mm ± 0.2 mm |
| Outer Jacket Color | Green | Green |
| Characteristic Impedance@1-100 MHz | 100 Ω ± 15 Ω | |
| Conductor Resistance | 60.0 Ohm/km max. | |
| Insulation Resistance | 0.50 GOhm x km min. | |
| Mutual Capacitance | 52.0 nF/km nom. | |
| Working Voltage | 300V | |
| Test Voltage | 1.5 KV | |
| 10 MHz | 6.0 dB/100m | |
| Attenuation | 16 MHz | 7.6 dB/100m |
| 62.5 MHz | 16 dB/100m | |
| 100 MHz | 21 dB/100m | |
| Weight | approximately 63.0 kg/km |
| Min. Bending Radius (Laying) | 5 x OD mm |
| Operating Temp.Range, min. | -40 °C |
| Operating Temp.Range, max. | +70 °C |
Stranded AWG 22/7 tinned copper cores with white, yellow, blue and orange insulation.
Aluminium-lined foil and overall tinned copper braid screens.
6.5 ± 0.2 mm overall diameter and 100 ± 15 ohms impedance at 1–100 MHz.
Identify the movement pattern before choosing the cable. For the drag-chain version, include chain radius, travel, speed and acceleration in the specification. Match the connector to the stranded cores and sheath diameter, and arrange strain relief at the equipment connection.
Profinet Type B Cable, Flexible Data and Data-Plus-Power Versions
Profinet Type A Cable, 100 Ohm, Solid Copper, PVC or PUR Sheath
Profibus SK Drag Chain Cable, 150 Ohm, Stranded Copper, PUR Sheath
How do the mobile and drag-chain versions differ?
The mobile version uses PVC inner and outer jackets. The drag-chain version uses an FRNC inner jacket and a PUR outer sheath.
Is the conductor assembly screened?
Yes. Aluminium-lined polyester foil and a tinned copper braid enclose the core assembly.
What conductor construction is used?
Both versions use stranded tinned copper conductors designated AWG 22/7.
What is the cable diameter?
The listed overall diameter is 6.5 ± 0.2 mm for both versions.
What operating range is listed?
The technical data gives an operating temperature range from −40°C to +70°C.
