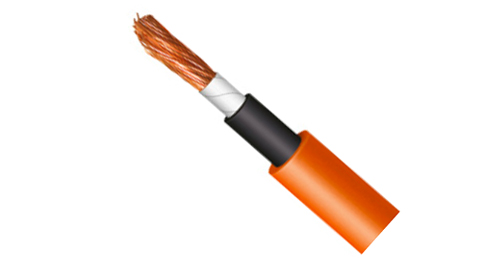

RZ1-K (AS+) Fire-Resistant Power Cable, utilizing advanced fire-resistant technology and eco-friendly materials, is specifically designed to ensure power supply under extreme conditions such as fires. Even in the event of a fire, it can continuously provide electricity to critical equipment, including emergency lighting, smoke extraction systems, fire alarms, and fire pumps, thereby securing valuable time for evacuation and firefighting operations.
UNE 211 025
IEC 60502
EN 50200
IEC 60331
IEC 61034
UNE-EN 50265-2-1
UNE-EN 50265-2-1
UNE-EN 50266
UNE-EN 50267-2-1
UNE 21123

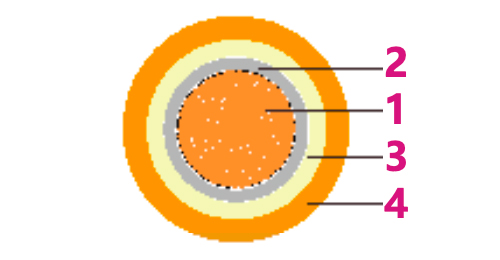

Flexible electrolytic copper conductor Class 5 according to UNE-EN 60228
Insulation: Mica tape + XLPE from 25mm²
Color coded to HD 308
LOSH polyolephine outer sheath according to UNE 21123
| Working voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Minimum bending radius | 5 x Ø |
| Working temperature | -15°C to +90°C |
| Short circuit temperature | +250°C |
| Insulation resistance | 20 MΩ x km |
| Halogen free | IEC 60754-1, EN 50267-2-1 |
| No corrosive gases | IEC 60754-2, EN 50267-2-2 |
| Low smoke density | IEC 61034, EN 50268-2 |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Fire resistant | UNE-EN 50200 PH90, UNE-EN 50362 PH90, IEC 60331-21 |
| Non-flame propagating | IEC 60332-3, EN 50266-2 |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 2(280/26) | 1×35 | 13.0 | 390 |
| 1(400/26) | 1×50 | 14.5 | 530 |
| 2/0(356/24) | 1×70 | 16.6 | 735 |
| 3/0(485/24) | 1×95 | 18.4 | 945 |
| 4/0(614/24) | 1×120 | 20.4 | 1190 |
| 300 MCM (765/24) | 1×150 | 22.4 | 1475 |
| 350 MCM (944/24) | 1×185 | 24.3 | 1765 |
| 500MCM(1225/24) | 1×240 | 27.6 | 2335 |
| - | 1×300 | 31.2 | 2920 |
| - | 1×400 | 35.8 | 3965 |
| 4(280/26) | 3×35 | 23.7 | 1265 |
| 2(280/26) | 4×35 | 26.1 | 1615 |
| 1(400/26) | 4×50 | 30.2 | 2245 |
| 16(30/30) | 4×70 | 33.0 | 2955 |
| 14(50/30) | 4×90 | 36.6 | 3810 |
| 2(280/26) | 5×35 | 28.4 | 1005 |
