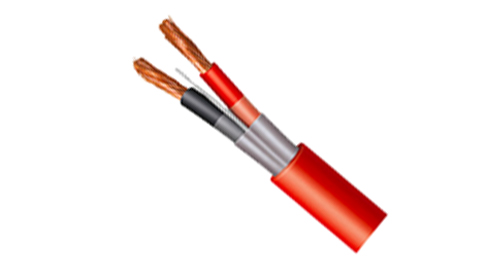

SOZ1-K(AS+) cable is a high-performance fire-resistant, flame-retardant, halogen-free cable specifically designed for applications requiring high safety and reliability. It is particularly suitable for critical electrical circuits such as fire detection systems, alarm systems, emergency buttons, and sensors . Compliant with Spanish standards, this cable ensures continuous power supply even during a fire, safeguarding personal safety and the normal operation of equipment.
UNE 211025
IEC 60228
IEC 60331-21
IEC 60754
IEC 60754-1
UNE EN 50267-2-3
UNE EN 50362 PH90
UNE EN 61034-2
UNE-EN 50200 PH90

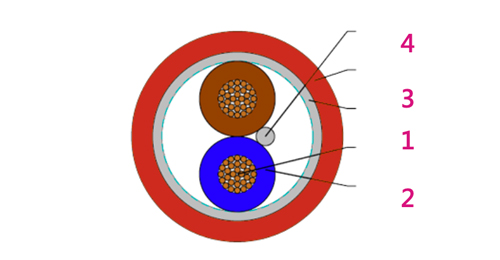

Flexible electrolytic copper conductor Class 5 according to UNE-EN 60228
Silicone insulation type EI2 according to UNE-EN 50363
Color coded to HD 308
Polyester tape, tin plated copper drainage wire and polyester aluminum tape
Halogen-free thermoplastic polyolefin sheath according to UNE 21123
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 5 x Ø |
| Working temperature | -15°C to +90°C |
| Short circuit temperature | +250°C |
| Insulation resistance | 20 MΩ x km |
| Halogen free | UNE-EN 50267 and EN 50267 |
| No corrosive gases | UNE-EN 50267 and EN 50267 |
| Low smoke density | UNE-EN 61034, EN 61034 and IEC 61034 |
| Fire resistant | UNE-EN 50200, EN 50200, UNE-EN 50362 and EN 50362 |
| Non-flame propagating | IEC 60332-3, EN 50266-2 |
| Non-fire propagating according to UNE-EN 50266 and EN 50266 | |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 16(30/30) | 2×1.5 | 8.6 | 105 |
| 14(50/30) | 2×2.5 | 9.9 | 135 |
