APPLICATION

The cables are designed for the main signalling circuits of 1500V DC electrifi ed lines.

STANDARD

SNCF CT 445

NF F 55-698

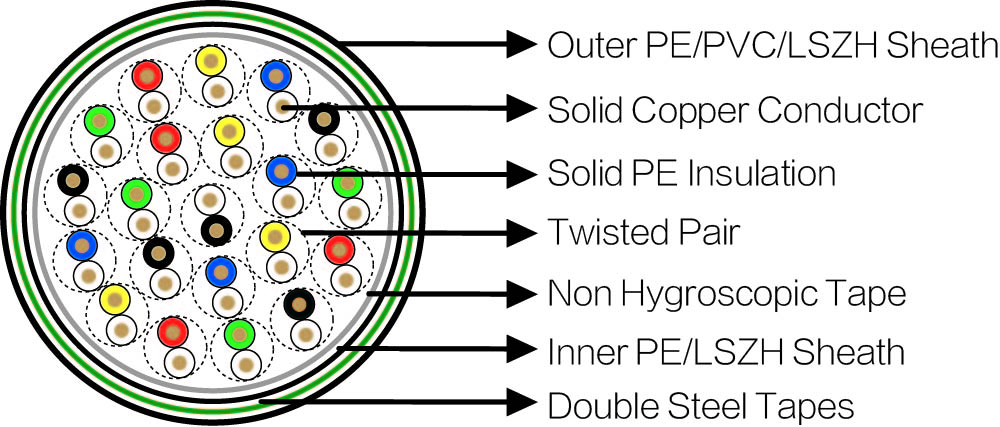

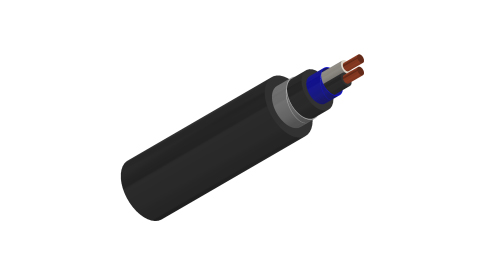

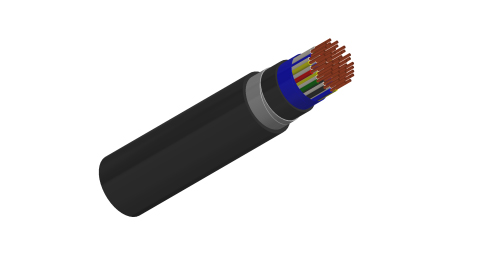

CABLE CONSTRUCTION

Conductors : Solid annealed copper, 1.0mm sq nominal cross section area.

Insulation : Solid polyethylene.

Cabling Element : Two conductors are twisted to form a pair.

Stranding : Pairs are helically stranded to form the cable core.

Core Wrapping : Plastic tape(s) with overlapping.

Inner Sheath : PE. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).

Mechanical Protection : Two helically applied steel tapes (0.15, 0.2/0.5mm, depending on pair count).

Outer Sheath : PE/PVC. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).

Remark : ZPFU : PE/PVC Sheath; ZPFU-SH : LSZH Sheath.

ELECTRICAL CHARACTERISTICS AT 20℃

MECHANICAL AND THERMAL PROPERTIES

Minimum Bending Radius : 8×OD (static); 16×OD (dynamic)

Temperature Range : -40℃ to +70℃ (during operation); -20℃ to +50℃ (during installation)

DIMENSIONS AND WEIGHT
